Universal COB LED Display
A practical COB platform built around a 640 × 480 mm cabinet and familiar 320 × 160 mm module architecture for professional indoor LED projects.

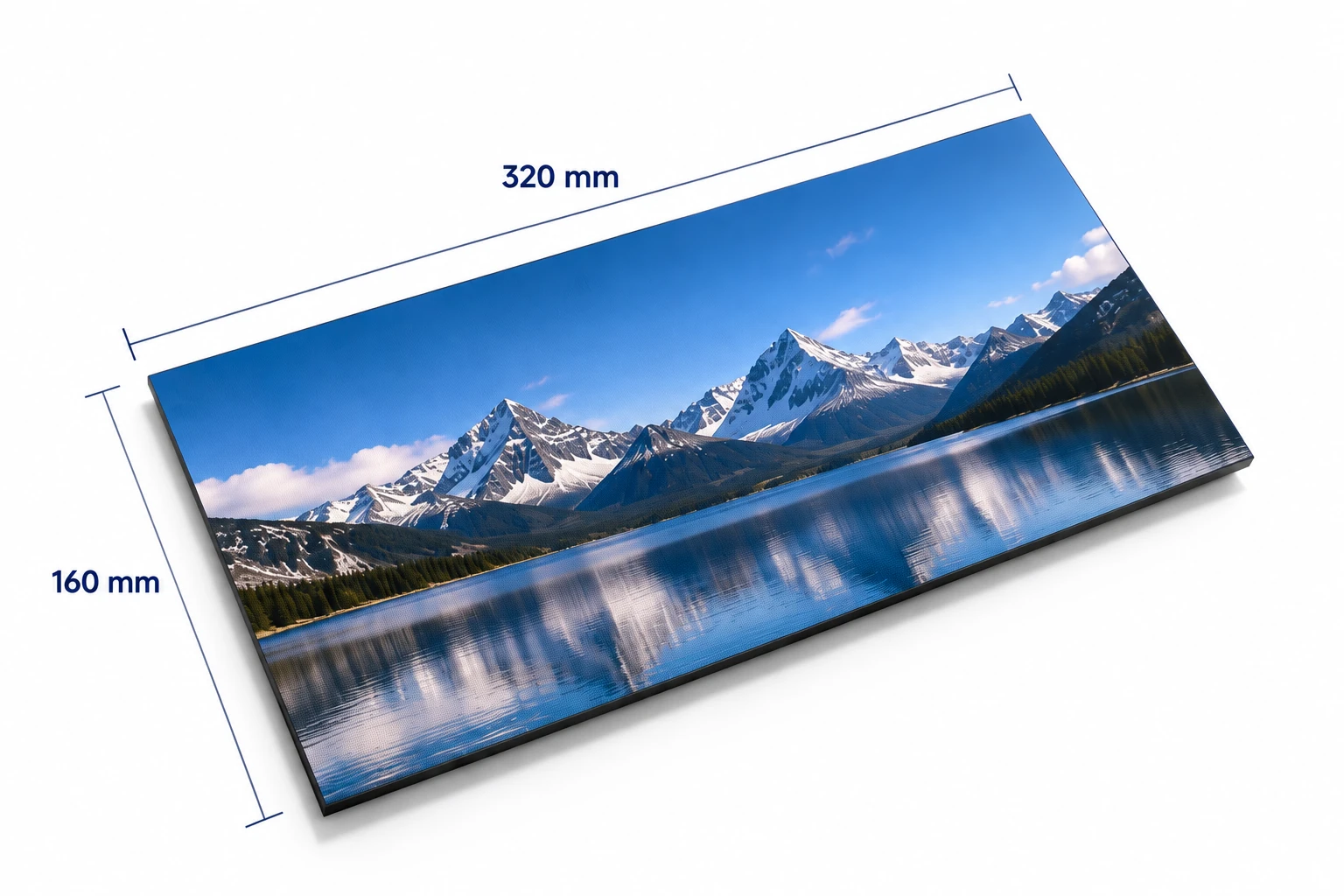

Built Around a Familiar 320 × 160 mm Module Format
The 320 × 160 mm COB module follows the assembly-hole format used by traditional 320 × 160 mm SMD modules, providing system integrators with a familiar module architecture when planning COB LED display projects.
Familiar Module Format
Based on the familiar 320 × 160 mm module dimensions used across many conventional fine-pitch LED systems.
A Practical Path to COB
The familiar module architecture can simplify product evaluation for integrators already accustomed to conventional 320 × 160 mm LED module systems.

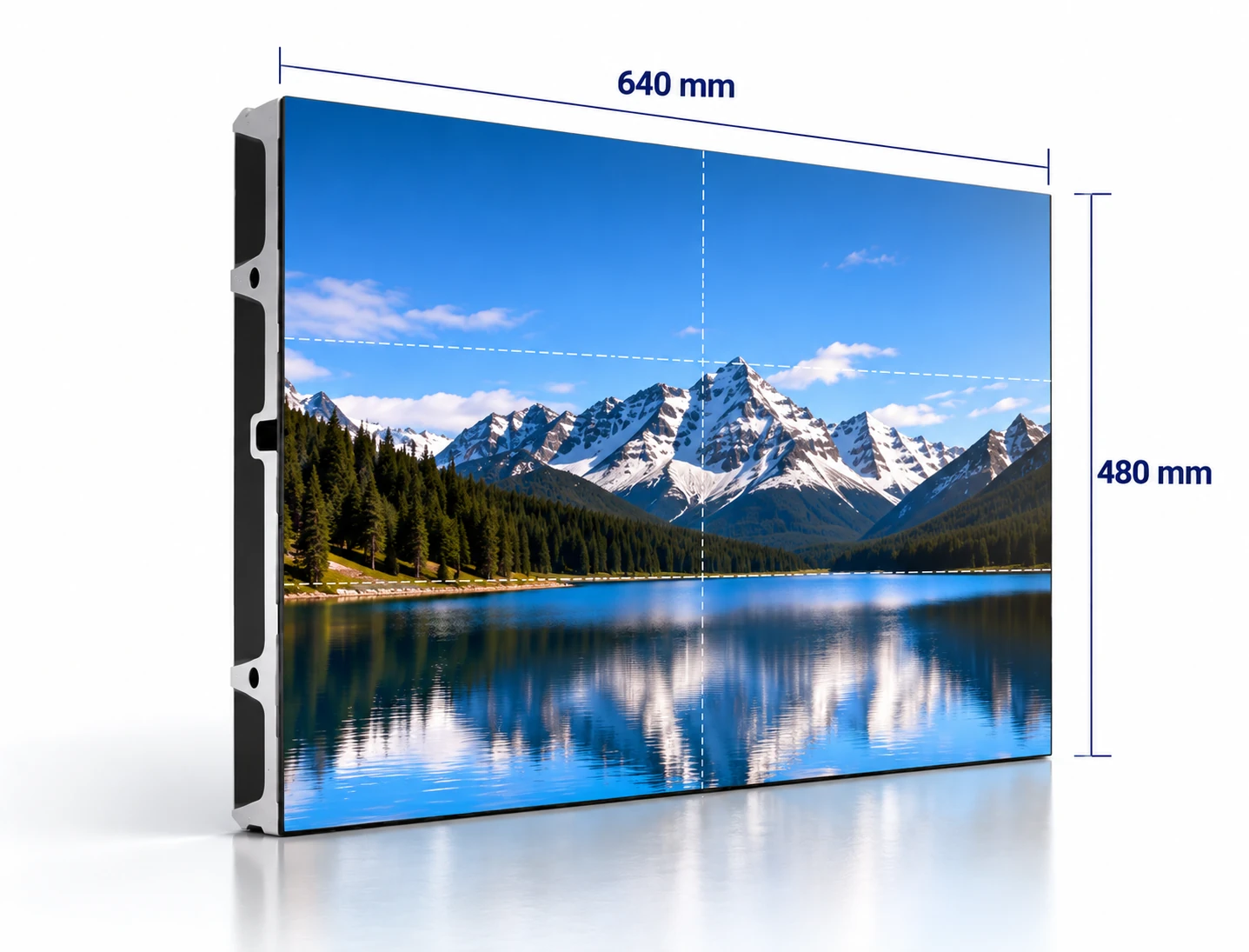

From Module to a 640 × 480 mm Cabinet
Six 320 × 160 mm COB modules form a 640 × 480 mm cabinet, creating a straightforward 2 × 3 module layout for indoor COB LED display projects.
Module Layout
Cabinet Format
Choose the Right Pixel Pitch for Your Project
Screen size, viewing distance and required resolution help determine the most suitable pixel pitch for each indoor COB LED display project.
Closer Viewing
Longer Viewing Distance

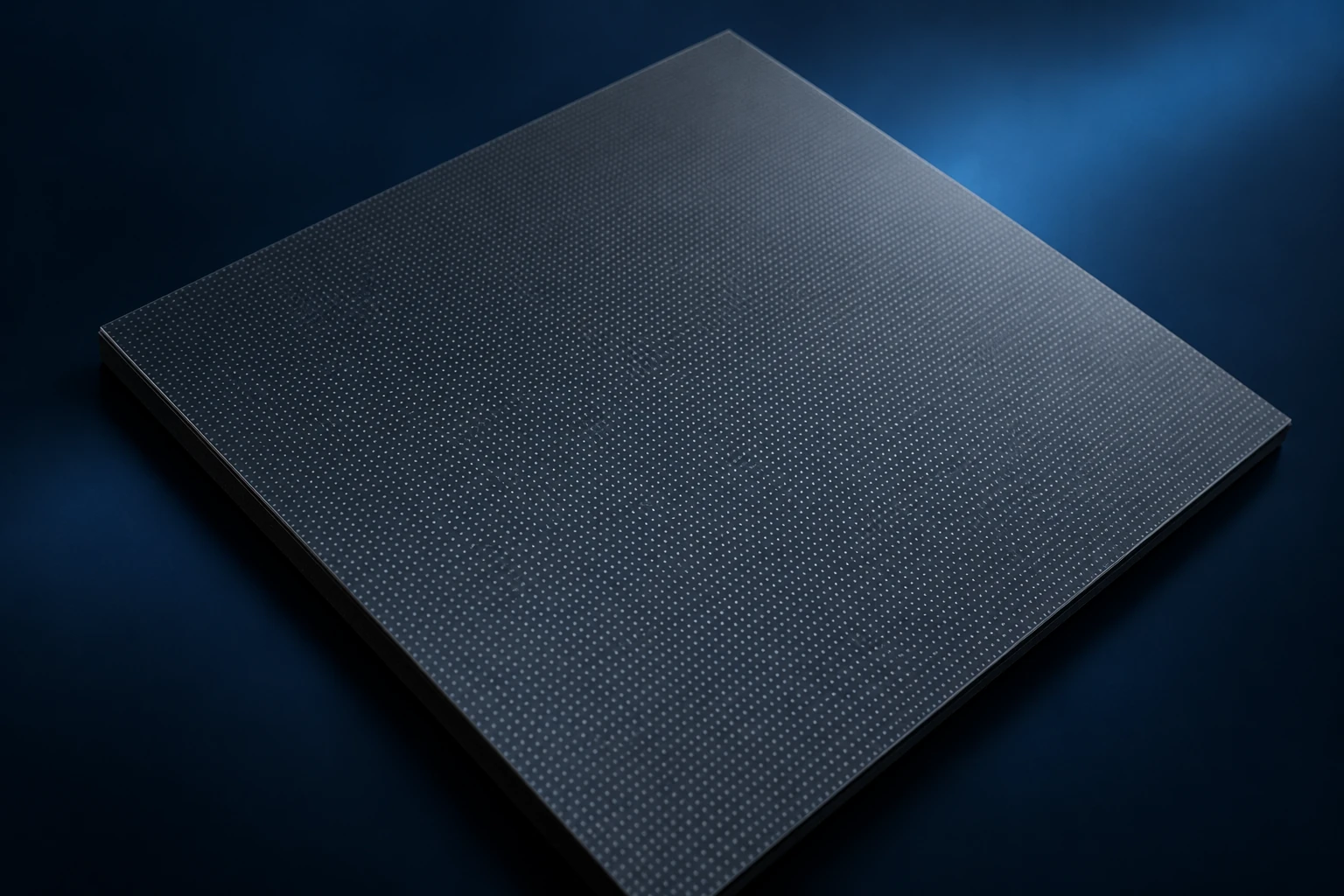

Built on Full Flip-Chip COB Technology
The Universal COB platform uses Full Flip-Chip COB technology to create a compact, integrated display surface for fine-pitch indoor LED applications.
Full Flip-Chip COB
Built around the Full Flip-Chip COB technology specified for the Universal COB platform.
Integrated COB Surface
COB packaging creates an integrated display surface designed for fine-pitch indoor LED applications.
Matt COB Finish
A matt COB surface helps reduce unwanted reflections while maintaining the dark, uniform appearance expected from indoor fine-pitch displays.
A Matt COB Surface Built for Everyday Project Environments
The integrated COB surface combines a matt finish with enhanced surface protection for professional indoor LED applications.
Helps reduce unwanted reflections from ambient lighting.
Provides a harder surface for everyday handling.
Adds protection on the PCB surface for indoor environments.

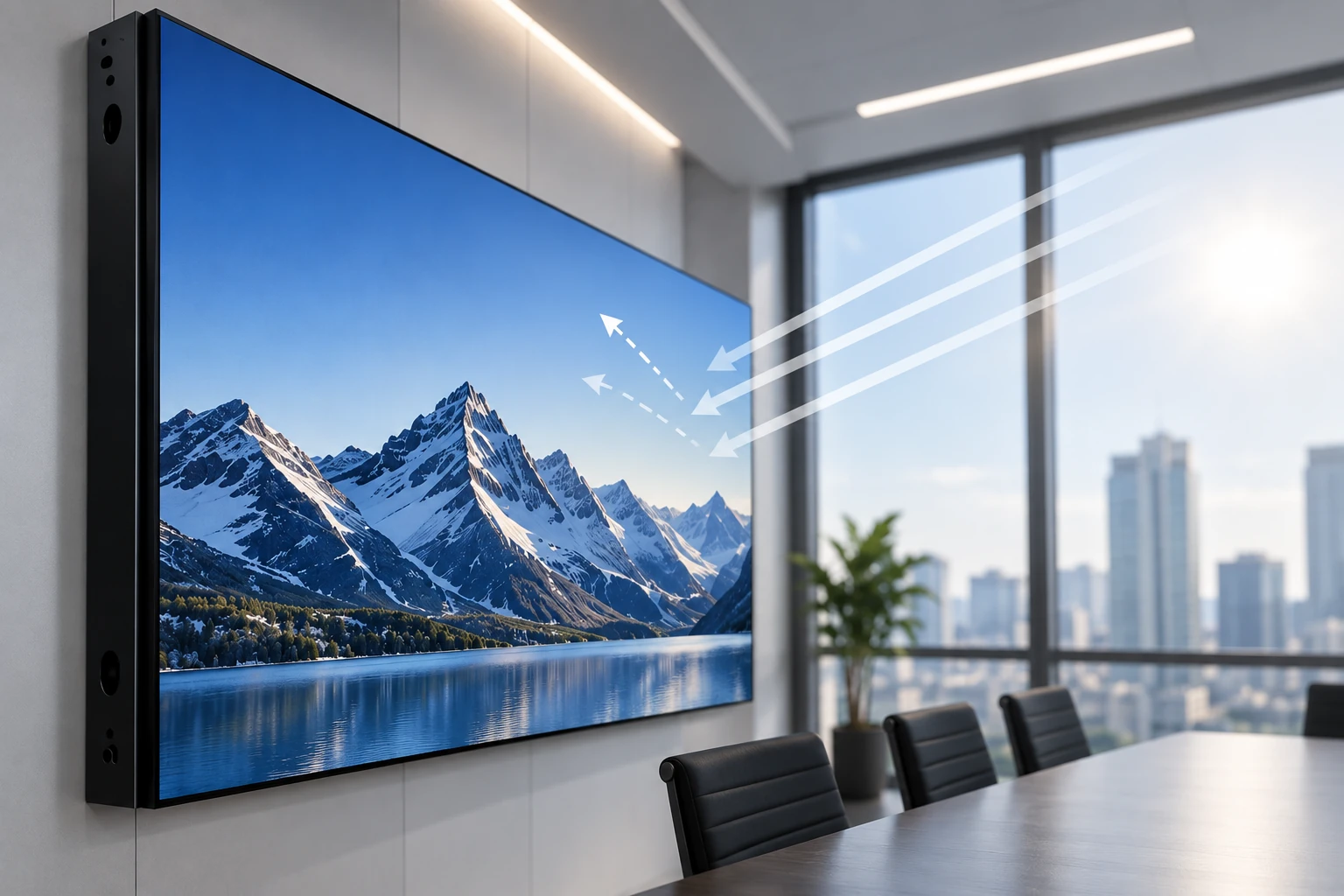

Better Visibility Under Ambient Light
The matt COB finish helps reduce unwanted reflections from overhead and ambient lighting, supporting clearer viewing in professional indoor environments.
More Confidence in Everyday Handling

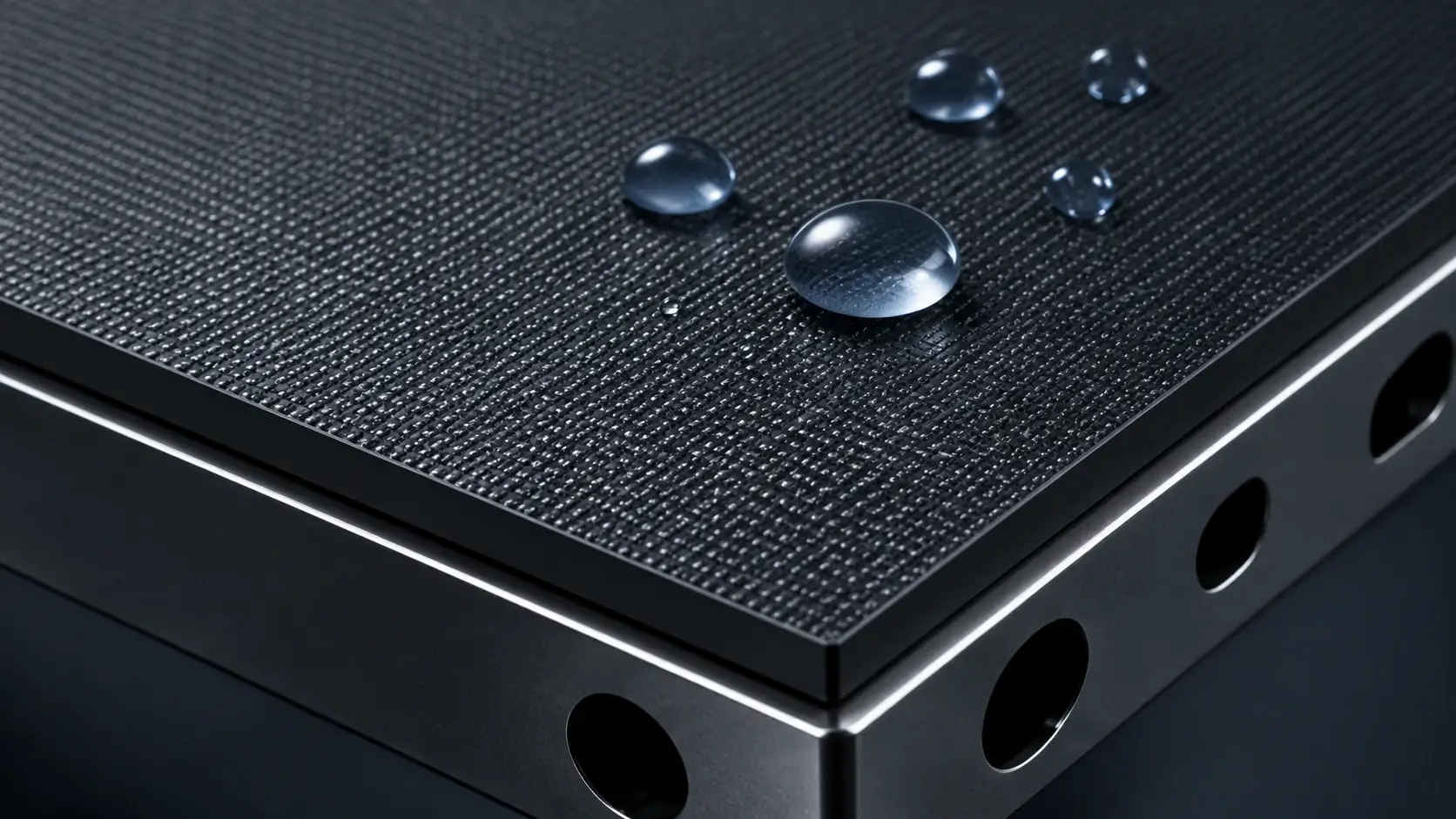

The integrated COB surface provides additional physical protection, supported by 4H surface hardness and an IP54-rated PCB surface for professional indoor applications.
Meeting rooms, control rooms and corporate environments often combine ambient lighting, close viewing and regular activity around the display. Surface characteristics therefore matter not only for protection, but also for the everyday viewing experience.
Designed for Professional Indoor LED Projects
The Universal COB platform is designed for professional indoor environments where fine pixel pitch, flexible system planning and reliable display performance need to work together.

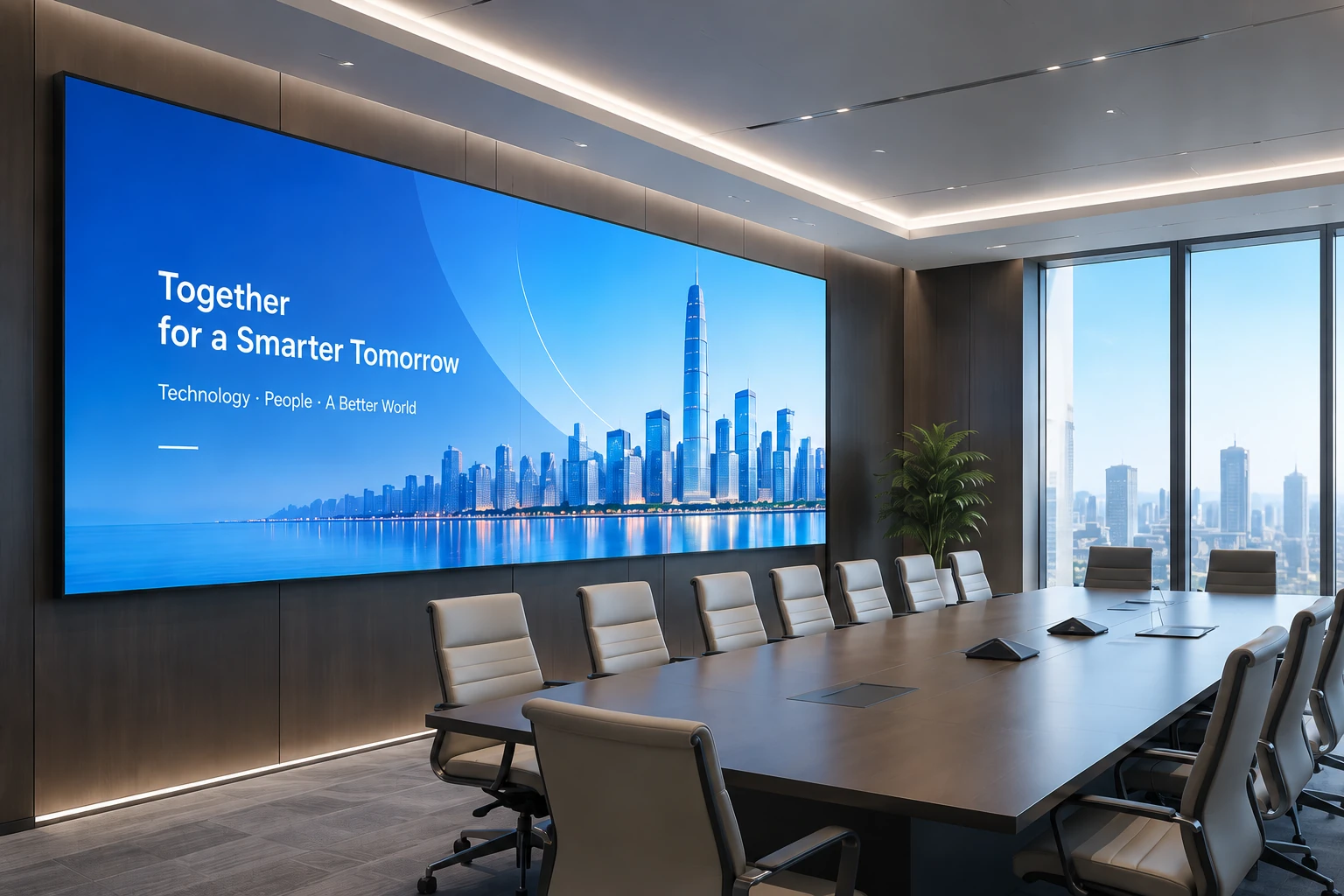

Corporate Meeting Rooms
Presentation, video conferencing and business content in professional meeting environments.
Control Rooms
Fine-pitch visualization for monitoring, information display and operational environments.
Command & Operation Centers
High-density information visualization across larger indoor LED display areas.
Corporate & Commercial Spaces
Professional indoor display applications in reception areas, corporate spaces and commercial environments.
Compare Pixel Pitches and Cabinet Configurations
Compare the available pixel pitches and key cabinet specifications across the Universal COB platform.
| Parameter | P1.25 | P1.53 | P1.86 |
|---|---|---|---|
| Pixel Density (pixels/m²) | 640,000 | 422,753 | 288,906 |
| Module Size (mm) | 320 × 160 | 320 × 160 | 320 × 160 |
| Module Resolution (pixels) | 256 × 128 | 208 × 104 | 172 × 86 |
| Cabinet Size (mm) | 640 × 480 | 640 × 480 | 640 × 480 |
| Cabinet Resolution (pixels) | 512 × 384 | 416 × 312 | 344 × 258 |
| Cabinet Weight (kg) | 7.5 | 7.5 | 7.5 |
| Brightness (nits) | 600 | 600 | 600 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 |
| Contrast Ratio | 10,000:1 | 10,000:1 | 10,000:1 |
| Viewing Angle (H/V) | 160° / 160° | 160° / 160° | 160° / 160° |
| Max Power Consumption | 135 W / panel | 88 W / panel | 88 W / panel |
Shared Platform Features
The same core platform features are shared across all three pixel pitches.
Frequently Asked Questions About the Universal COB LED Display
Find answers to common questions about module architecture, pixel pitch selection, installation and maintenance.
What pixel pitches are available for the Universal COB LED Display?
The Universal COB platform is available in P1.25, P1.53 and P1.86, allowing the pixel pitch to be selected according to screen size, viewing distance and target resolution.
What is the module size of the Universal COB LED Display?
The platform uses a 320 × 160 mm COB LED module. Its module dimensions and assembly-hole format follow the familiar 320 × 160 mm architecture used in many conventional fine-pitch LED systems.
What is the cabinet size?
Each cabinet measures 640 × 480 mm and uses a 2 × 3 layout of six 320 × 160 mm COB modules.
Does the Universal COB LED Display support front maintenance?
Yes. The Universal COB platform is designed for front service, allowing maintenance access from the front of the display.
Is the Universal COB LED Display IP54 rated?
The specification refers to an IP54-rated PCB surface, not an IP54 rating for the complete LED display cabinet. Project protection requirements should therefore be evaluated according to the actual installation environment.
How do I choose between P1.25, P1.53 and P1.86?
Pixel pitch should be selected according to viewing distance, screen dimensions, content requirements and target resolution. P1.25 provides the highest pixel density of the three options, while P1.53 and P1.86 provide progressively lower pixel densities for projects with different viewing and resolution requirements.
