Ultra-Thin LED Video Wall
31mm Ultra-Thin | 7680Hz High Refresh | Front Maintenance
More Space for the Installation. Less Space for the Cabinet.

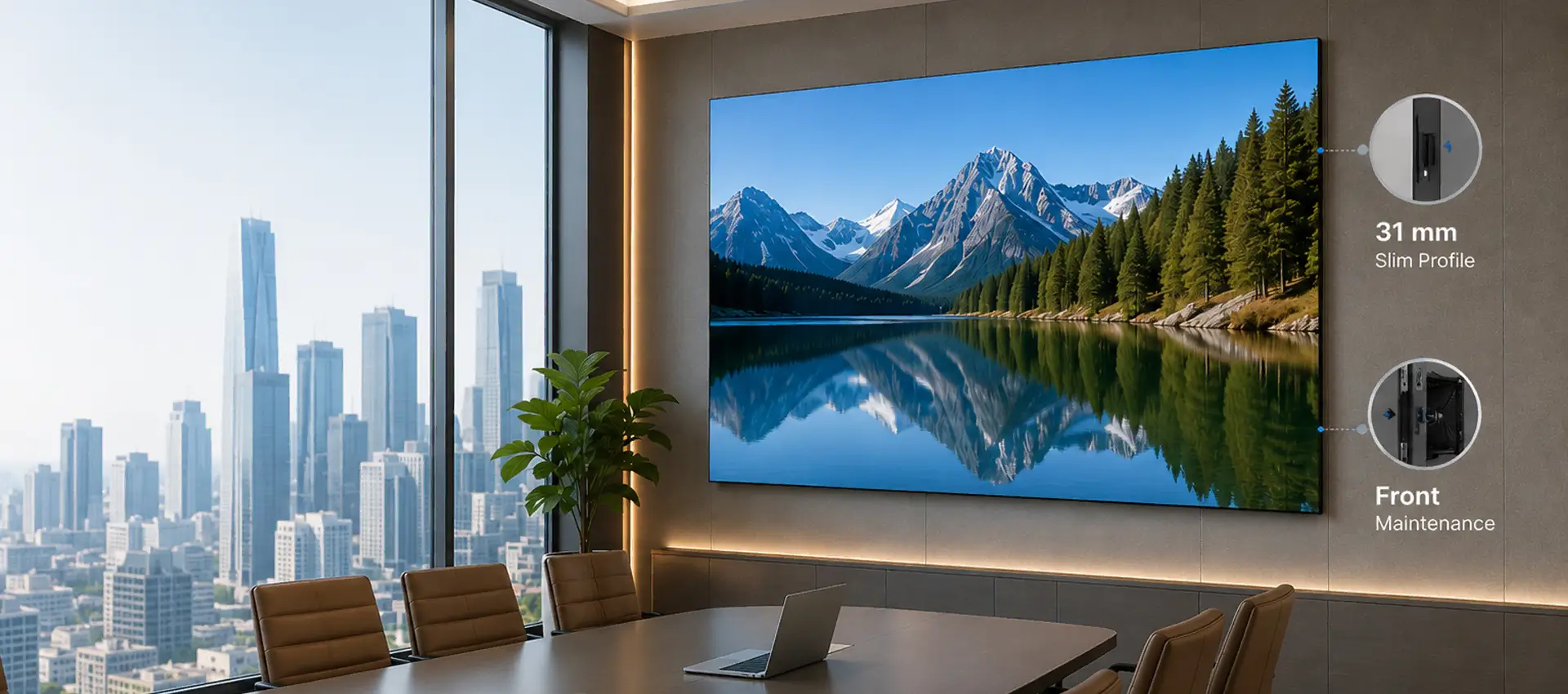

With a cabinet depth of only 31 mm, the TQC Series is designed for installations where wall depth, structural space and visual integration matter.
31 mm slim-profile cabinet structure
Reduced cabinet depth helps minimize wall projection and structural space requirements.
A slim cabinet profile supports cleaner integration where available installation depth is limited.
Reduced projection helps the display sit closer to the architectural surface for a cleaner finished appearance.
Smooth on Screen. Stable on Camera.
With a refresh rate up to 7680Hz, the TQC Series delivers smooth, stable visuals for professional display environments and camera-facing applications.
Visible scan lines may appear when captured on camera.
High refresh performance helps maintain cleaner visuals when captured on camera.
Helps reduce visible scan-line interference in camera-facing applications.
High refresh performance supports smoother presentation of fast-moving content.
Stable visual performance for demanding commercial display environments.
Built to Fit Where Every Millimeter Matters.
The TQC Series is designed for professional indoor environments where installation space, architectural integration and long-term visual performance all matter.

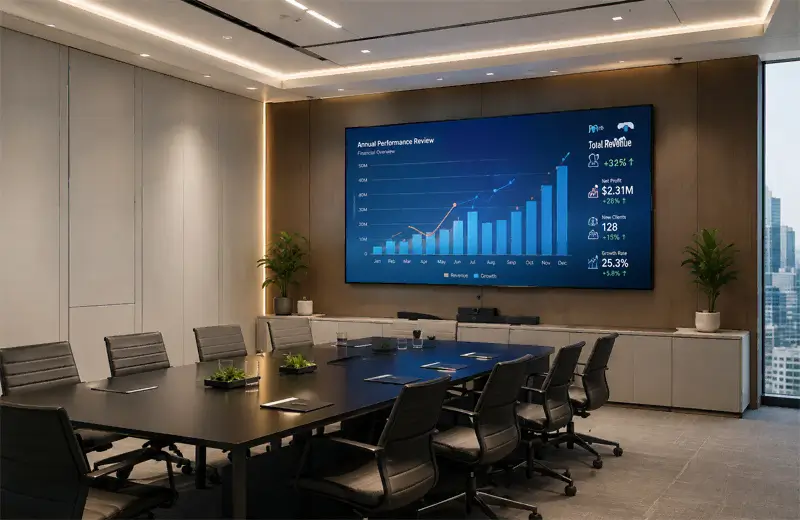

Meeting Rooms
Clean integration for professional presentation and collaboration spaces.

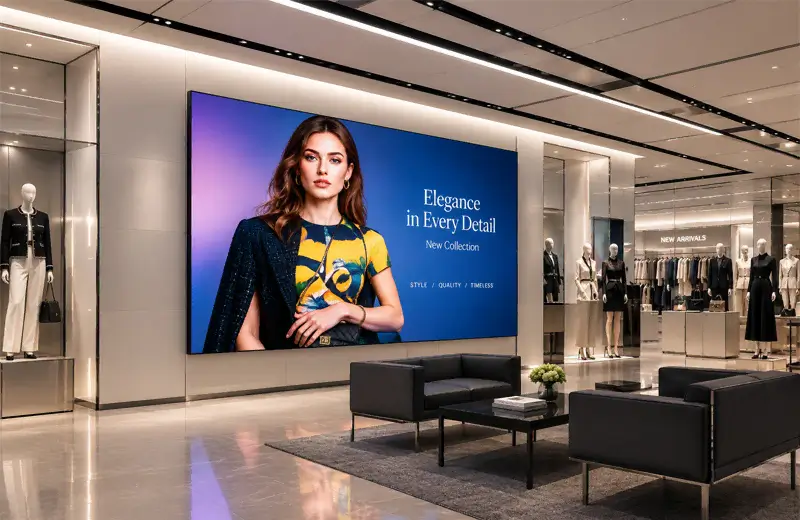

Retail & Showrooms
Slim installation supports cleaner visual integration in premium retail and showroom environments.

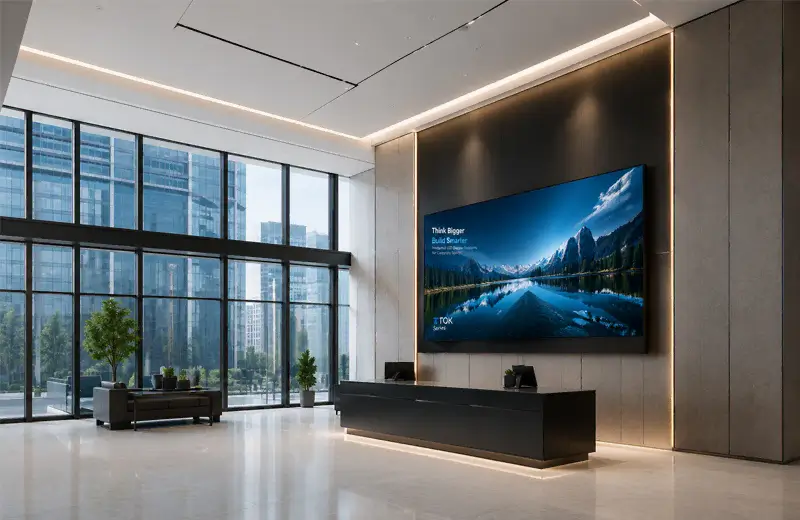

Corporate & Commercial
Designed for modern commercial interiors where display performance and architectural integration both matter.
Four Pixel Pitches. One Ultra-Thin Platform.
Available in four pixel pitch options from 1.56 mm to 3.9 mm, the TQC Series provides flexible configuration choices for different viewing distances and professional indoor display requirements.
| Parameter | TQC1.56 P1.56 | TQC1.95 P1.95 | TQC2.6 P2.6 | TQC3.9 P3.9 |
|---|---|---|---|---|
| Lamp Bead Packaging | SMD1212 | SMD1515 | SMD1515 | SMD2020 |
| Pixel Pitch (mm) | 1.5625 | 1.953 | 2.604 | 3.91 |
| Module Dimensions (mm) | 250 × 250 × 2 | 250 × 250 × 2 | 250 × 250 × 2 | 250 × 250 × 2 |
| Cabinet Dimensions (mm) | 1000/750/500 × 250 × 31 | 1000/750/500 × 250 × 31 | 1000/750/500 × 250 × 31 | 1000/750/500 × 250 × 31 |
| Pixel Density (dots/m²) | 409600 | 262144 | 147456 | 65536 |
| Cabinet Material | Profile Aluminum Cabinet | Profile Aluminum Cabinet | Profile Aluminum Cabinet | Profile Aluminum Cabinet |
| Cabinet Weight (kg) | 5.5 / 4.5 / 2.9 | 5.5 / 4.5 / 2.9 | 5.5 / 4.5 / 2.9 | 5.5 / 4.5 / 2.9 |
| Gray Scale Level (Bit) | 14–16 | 14–16 | 14–16 | 14–16 |
| Refresh Rate (Hz) | 7680 | 7680 | 7680 | 7680 |
| Drive Mode | 1/32 | 1/32 | 1/32 | 1/32 |
| Brightness (nit) | ≥500 | ≥500 | ≥500 | ≥500 |
| Horizontal/Vertical Viewing Angle (°) | 140 / 140 | 140 / 140 | 140 / 140 | 140 / 140 |
| AC Input Voltage (V) | AC: 100–240V | AC: 100–240V | AC: 100–240V | AC: 100–240V |
| Peak Power (W/m²) | 450 | 450 | 450 | 450 |
| Average Power (W/m²) | 150 | 150 | 150 | 150 |
| Operating Temperature (°C) | -40°C ~ 50°C | -40°C ~ 50°C | -40°C ~ 50°C | -40°C ~ 50°C |
| Product Protection Rating (Front/Rear) | IP3X | IP3X | IP3X | IP3X |
| Storage Humidity (RH) | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% |
| Operating Humidity (RH) | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% |
Ultra-Thin Depth
Lightweight Cabinet
High Refresh Rate
High Brightness

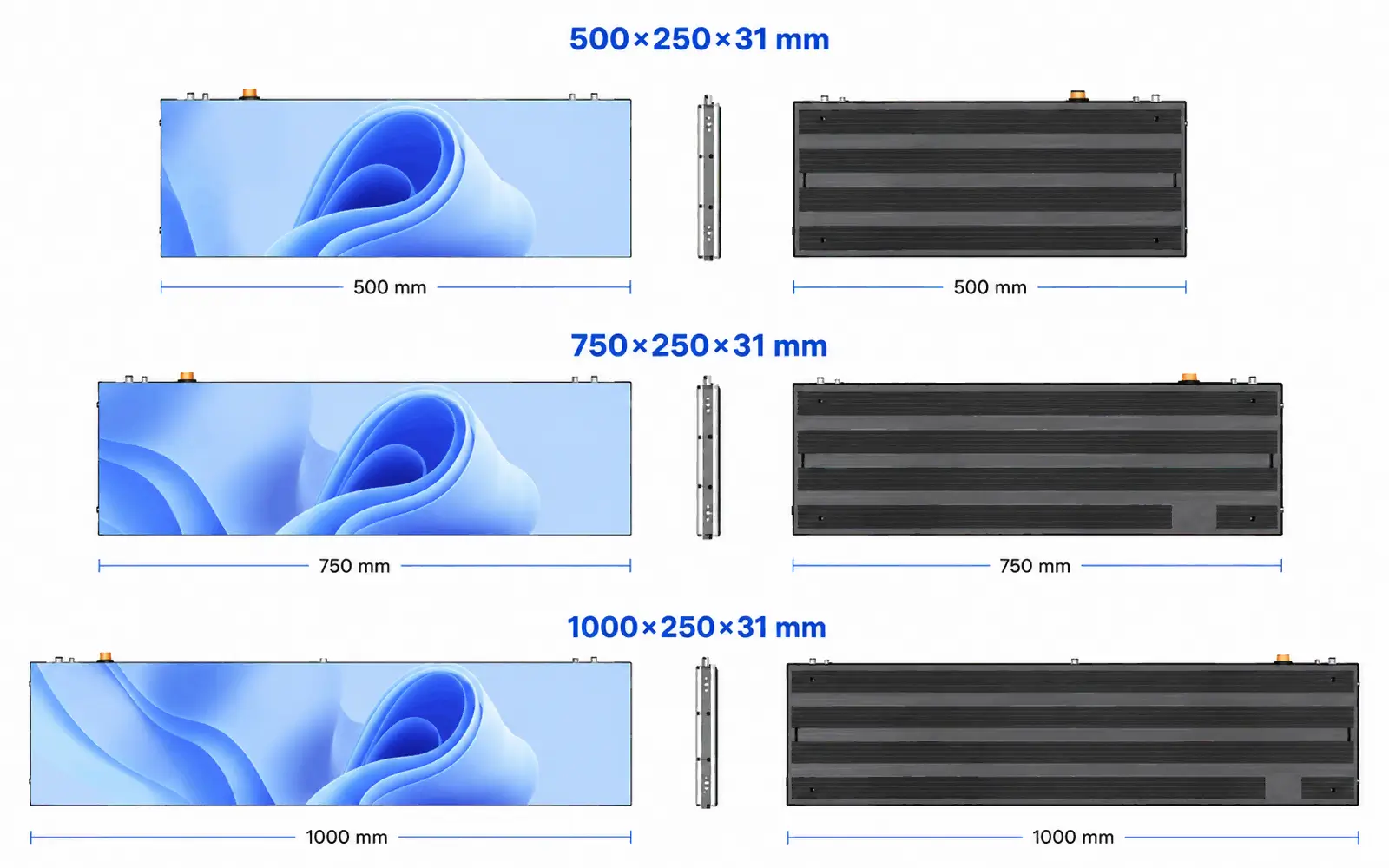

Three Cabinet Sizes. More Freedom to Fit the Space.
With 500 mm, 750 mm and 1000 mm cabinet lengths available, the TQC Series provides greater flexibility for different screen dimensions and installation layouts — while maintaining the same 250 mm cabinet width and ultra-thin 31 mm depth.
Different lengths can be freely combined for flexible screen configurations.
From 2.9 kg per cabinet for easier handling and installation.
Designed for space-conscious projects and wall-mounted installations.
Full front access supports faster service and easier maintenance.
All cabinets share the same 250 mm width and 31 mm depth for consistent appearance and easier system configuration.
Three Cabinet Sizes. More Freedom to Fit the Space.
With 500 mm, 750 mm and 1000 mm cabinet lengths available, the TQC Series provides greater flexibility for different screen dimensions and installation layouts — while maintaining the same 250 mm cabinet width and ultra-thin 31 mm depth.
Flexible Sizing
Three cabinet lengths provide greater flexibility for different screen dimensions and installation layouts.
Easier Integration
A slim, modular cabinet platform helps simplify integration where installation depth and architectural finish matter.
Built for Professional Applications
Designed for meeting rooms, retail environments and commercial display projects requiring stable long-term performance.
Frequently Asked Questions
Answers to common questions about TQC Series cabinet
configurations, installation and display performance.
What pixel pitch options are available for the TQC Series ultra-thin LED video wall?
Supports P1.56, P1.95, P2.6, P3.91 pixel pitches—ideal for close-up high-definition indoor settings with sharp, grain-free visuals.
What is the thickness and weight of this LED video wall? Is it suitable for space-limited environments?
Just 31mm thin and 2.9kg light; ultra-slim design saves installation space—solves bulky video wall issues, perfect for hotel lobbies/conference rooms.
How is the maintenance method for the TQC Series? Will it cause usage interruptions?
Front modular maintenance for quick swaps without disassembly; <5-minute downtime; rigid connections stable—solves rear access space pains.
Is TQC easy to install? What methods does it support?
Yes, captive screws + locating pins for one-person quick assembly; supports wall-mount/hoisting/column—eases complex setup pains, large screens in 10 minutes.
Can TQC’s refresh rate eliminate image ghosting/ripples?
7680Hz high refresh ensures no ghosting/ripples for smooth HD video—camera-friendly, resolves dynamic blur issues.
Which indoor application scenarios is TQC best suited for?
Designed for conference rooms, hotel lobbies, and control rooms. Ultra-thin/lightweight and free splicing deliver immersive experiences with fast setup.
No back space for maintenance? Can TQC truly do front service?
100% front service! 31mm slim + magnetic modules, no rear access needed, 5-min module swap by one person; front power + hidden cables, no wall removal, zero downtime—ideal for wall-flush hotel lobbies & conference rooms, ends “rear service = tear down ceiling” nightmares!
Black lines or uneven splicing? Can TQC achieve true seamless?
True zero-black-line seamless! Rigid module-cabinet bonding + ≤0.05mm tolerance, <0.1mm gap, 7680Hz + grayscale correction removes ripples/ghosting; one-click auto-leveling, 10㎡ in 15 mins, supports any irregular splicing—ensures control room/retail displays are mirror-flat!
