TQW - Series Micro COB LED

COB LED displays provide the clarity, reliability, and visual power that today’s digital environments demand.
LED COB Indoor Display

TQW - Series Micro COB LED

P0.9 | P1.2 | P1.5 | P1.8

The Ultimate Micro COB LED Display has arrived. Leye TQW Series (P0.9 / P1.2 / P1.5 / P1.8) adopts the most advanced Flip-Chip COB technology, delivering true seamless splicing with zero visible gaps, zero dead pixels, and revolutionary 5-second front maintenance.

Over the past 15 years, our engineering team in Shenzhen has delivered more than 5,000 square meters of fine-pitch LED solutions to command centers, broadcast studios, and high-end conference rooms across Europe and North America. We know exactly what professional buyers need: crystal-clear image quality that lasts 24/7, ultra-high contrast that makes every detail pop, and maintenance so simple that one technician can handle it in minutes — not days.

Unlike traditional SMD or standard COB displays that suffer from obvious seams, frequent dead pixels, and complicated rear maintenance, the TQW Series Flip-Chip Micro COB LED completely eliminates these pain points. With 600 nits brightness, 5000:1 ultra-high contrast ratio, HDR10 support, and IP5X protection, it performs flawlessly even in bright control rooms or sophisticated broadcast environments.

Whether you are building a mission-critical command center, a premium conference hall, or a next-generation broadcast studio, the Leye TQW Series gives you the confidence of choosing a proven, reliable Micro COB LED display that has been battle-tested in real-world 24/7 operations.

Ready to experience the difference? Contact us today for a free technical consultation, detailed quotation, or live demo.

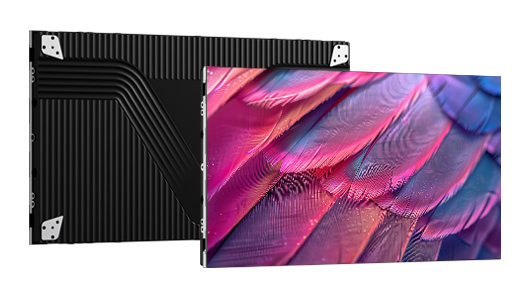

Indoor COB LED Video Wall
Flip-Chip COB LED-Front
Flip-Chip COB LED-Side
Flip-Chip COB LED-Back-1
Flip-Chip COB LED-Back-2
Download Brochure
Contact us
Parameter                        P0.9                        P1.2                         P1.5                        P1.8 Description
Pixel Pitch 0.9 mm 1.2 mm 1.5 mm 1.8 mm Ultra-fine Micro COB pitch for exceptional clarity
Brightness 600 nits Uniform and eye-friendly brightness suitable for indoor environments
Contrast Ratio 5000:1 Ultra-high contrast for deep blacks and vivid, lifelike colors
Color Gamut ≥95% DCI-P3 Broadcast-grade color accuracy and reproduction
Viewing Angle 160° (H/V) Consistent image quality from any viewing angle
Lifespan ≥100,000 hours Reliable 24/7 continuous operation
Protection Level IP5X Dust-proof, moisture-proof and impact-resistant
Maintenance Method 5-second Front Maintenance Magnetic modules – quick and easy replacement without dismantling the screen
Refresh Rate ≥3840 Hz Flicker-free display with no scanning lines
Gray Scale 16 bit Smooth and natural color transitions

Note: All specifications are typical values. Actual performance may vary slightly depending on configuration. Contact us for the latest detailed test report.

Micro COB LED
Contact us

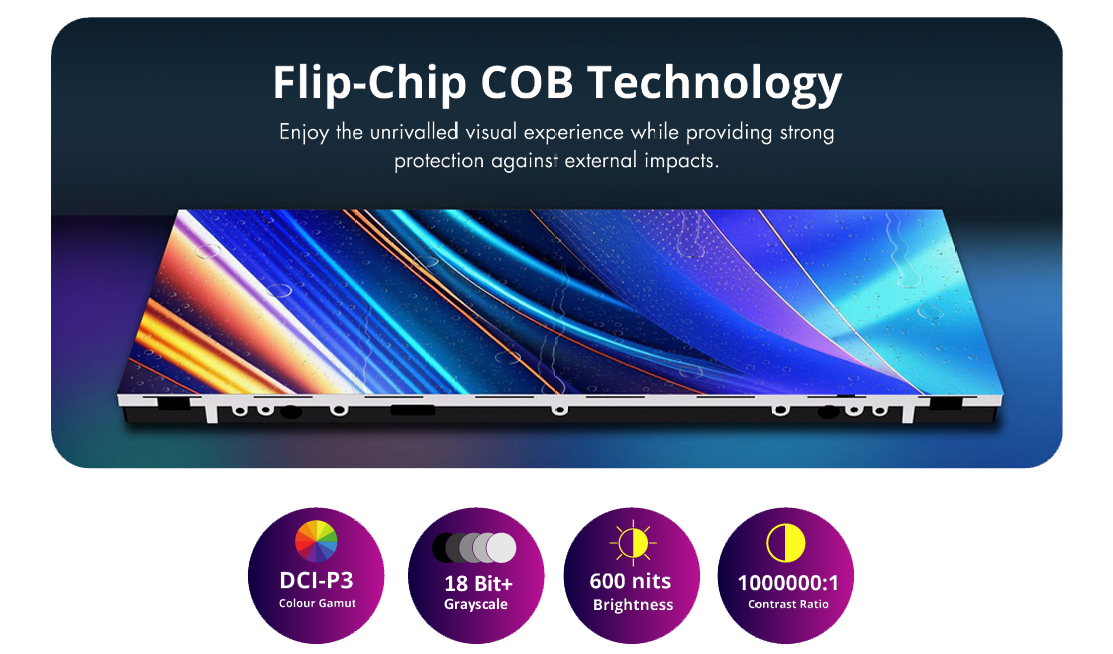

Flip-Chip COB Technology

The Leye TQW Series Micro COB LED Display is powered by advanced Flip-Chip COB technology. Unlike traditional SMD or standard COB, the LED chip is flipped and bonded directly to the PCB without any gold wires. This breakthrough design delivers true seamless splicing and superior reliability.

Key advantages include:

  • True Seamless Splicing – Zero visible gaps between modules for a perfect one-piece screen look.
  • Extremely Low Dead Pixel Rate – No fragile wires mean far fewer failures. Our real-world deployments show dead pixel rates below 1 in 1,000,000.
  • Better Heat Dissipation – Direct chip-to-PCB contact keeps the display cooler and more stable for 24/7 operation.
  • Ultra-High Contrast – Achieves 5000:1 contrast ratio with deeper blacks and vivid colors.
  • 5-Second Front Maintenance – Magnetic modules allow quick panel replacement from the front without dismantling the whole screen.

After 15+ years of development and hundreds of installations in command centers and broadcast studios across Europe and North America, our Shenzhen engineering team has made the TQW Series one of the most reliable Micro COB LED displays on the market.

Whether for P0.9 ultra-fine control rooms or P1.8 conference halls, the Flip-Chip COB technology ensures sharp image quality and long-term stability.

Main Features

Flip-Chip COB Seamless Splicing

Micro-level precision assembly ensures invisible seams for immersive, continuous displays—solves uneven splicing pains.

HDR High Dynamic Range

Supports HDR content for enhanced dynamic range and detail, delivering lifelike imagery.

Ultra-High Contrast Ratio

COB LED Display encapsulation optimizes black levels for 5000:1 contrast, highlighting deep blacks and vibrant colors.

Wide Color Gamut & Accuracy

Covers over 95% DCI-P3 for precise color reproduction, ideal for professional video applications.

Ultra-Wide Viewing Angle

160°+ horizontal/vertical viewing for consistent color and brightness from multiple angles.

Superior Durability

Flip-Chip COB encapsulation resists shock, moisture, and dust, with over 100,000-hour lifespan.

High Brightness with Low Glare

600 nits uniform brightness minimizes glare for comfortable extended viewing.

Energy-Efficient & Low Maintenance

Low power consumption reduces energy use and maintenance, with remote monitoring support.

Real-World Applications

P1.2 Micro COB LED Video Wall
Seoul International Christian Center
In 2025, we installed a 120㎡ P1.2 Flip-Chip Micro COB LED display in Seoul International Christian Center, delivering a seamless, high-contrast worship experience with zero visible gaps even from the front rows.
P0.9 Command Room Display
Traffic Command Center
A major traffic command center chose our P0.9 TQW Series Flip-Chip Micro COB LED wall for real-time monitoring, achieving ultra-clear visuals and highly reliable 24/7 operation with easy 5-second front maintenance.
P1.5 HDR Production Wall
Broadcast Studio
A professional broadcast studio installed a P1.5 Flip-Chip Micro COB LED video wall, enabling true HDR10 content with outstanding 5000:1 contrast and accurate colors for high-quality live production.
Chat on WhatsApp Now !

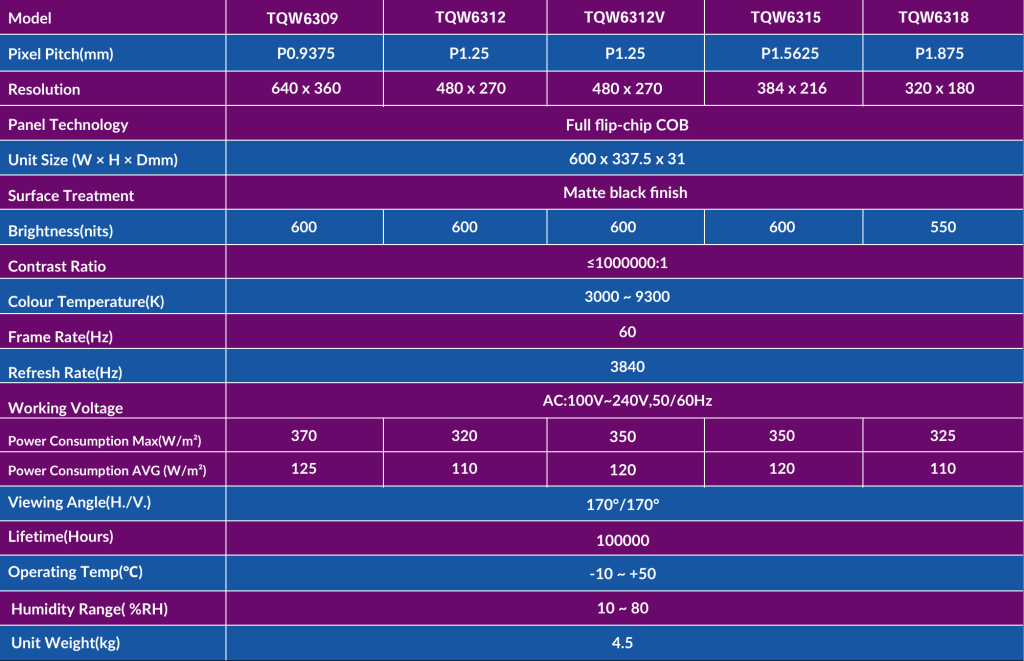

SPECIFICATIONS

ModelTQW6309TQW6312TQW6312VTQW6315TQW6318
Pixel Pitch(mm)P0.9375P1.25P1.25P1.5625P1.875
Resolution640 × 360480 × 270480 × 270384 × 216320 × 180
Panel TechnologyFull flip-chip COB
Unit Size (W × H × D mm)600 × 337.5 × 31
Surface TreatmentMatte black finish
Brightness(nits)600600600600550
Contrast Ratio≤1000000:1
Colour Temperature(K)3000 ~ 9300
Frame Rate(Hz)60
Refresh Rate(Hz)3840
Working VoltageAC:100V~240V,50/60Hz
Power Consumption Max(W/m²)370320350350325
Power Consumption AVG (W/m²)125110120120110
Viewing Angle(H./V.)170°/170°
Lifetime(Hours)100000
Operating Temp(°C)-10 ~ +50
Humidity Range(%RH)10 ~ 80
Unit Weight(kg)4.5

Note: All specifications are typical values and may vary slightly depending on configuration. Please contact us for the latest detailed test report.

TQW - Series Micro COB LED Display FAQ – Frequently Asked Questions

Supports P0.9, P1.2, P1.5, P1.8 pixel pitches—ideal for close-up high-definition displays in professional indoor settings, delivering micro-level fine visuals.

(LeyeDisplay)

600 nits brightness and 5000:1 ultra-high contrast, powered by flip-chip COB for low-glare uniform lighting; supports HDR for enhanced detail and color performance.

160°+ ultra-wide viewing angle ensures consistency from multiple angles; 95%+ DCI-P3 wide color gamut for precise reproduction—perfect for broadcast studios, conference rooms, and command centers.

Features flip-chip COB encapsulation for shock, moisture, and dust resistance; IP5X protection rating with over 100,000-hour lifespan—ideal for 24/7 operations in data centers or stock trading centers.

Yes, modular design enables quick seamless splicing; standard accessories include signal/power cables, mounting brackets, control cards, and software kit—for easy wall-mount or embedded installations.

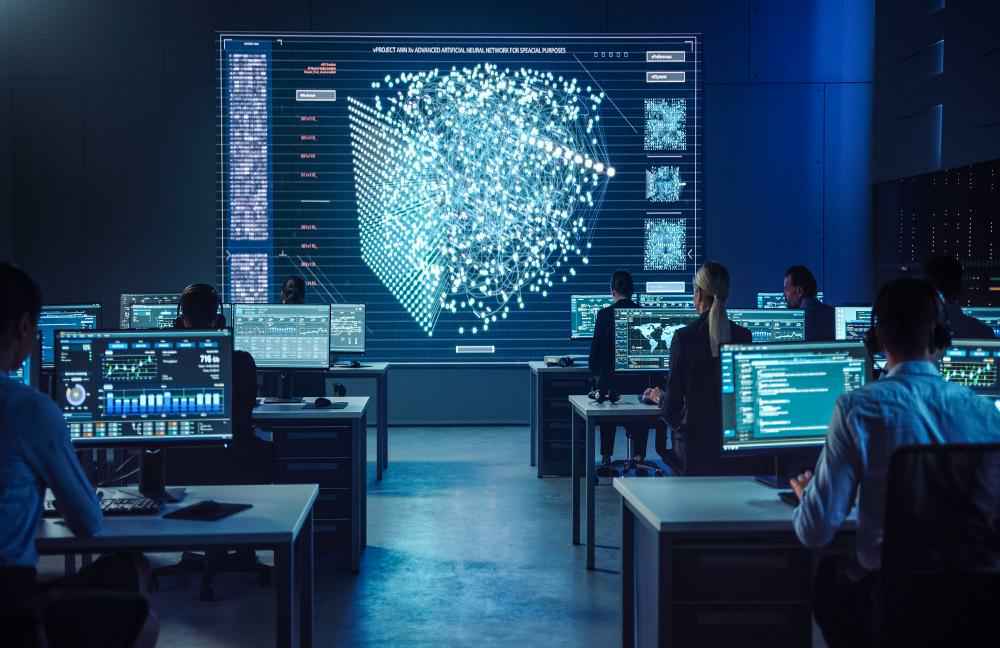

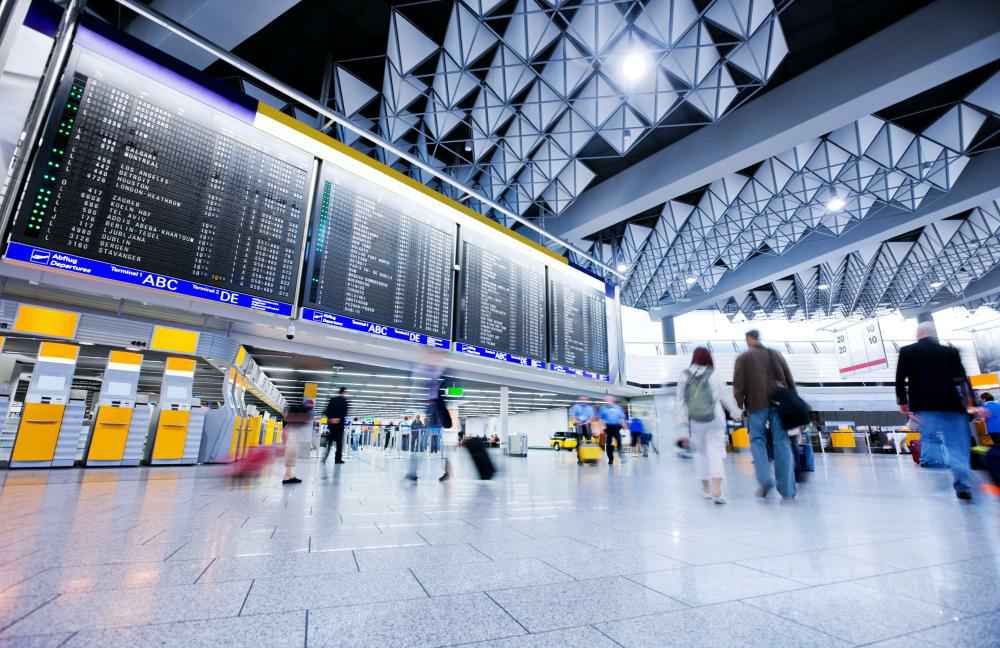

Designed for conference rooms, command centers, airport info displays, broadcast studios, and data centers. High contrast and HDR ensure clear reliability in education, healthcare, and corporate settings.

Absolutely durable! Flip-chip COB encapsulation fully protects chips—withstands 5kg drop impact, IP5X dust/moisture-proof, no worries about bumps or harsh conditions. Front-service modular design allows 10-second module swap, zero glue/zero solder joints, maintenance cost 1/3 of traditional SMD, >100,000-hour lifespan, 24/7 worry-free operation!

Zero dead pixel risk! Flip-chip COB with no gold wire bonding eliminates cold solder joints, pixel failure rate < 1 in 1 million. Front-service magnetic modules enable 5-second plug-and-play replacement, no need to dismantle entire screen, downtime ≤ 1 minute, supports hot-swappable maintenance—ensuring mission-critical sites like command centers and broadcast studios never go dark!
