TQ-One Series All-in-One LED Display
An integrated LED display solution combining power, signal processing and control for professional indoor LED video wall applications.
43″ / 55″ | P0.9–P2.5 | COB / SMD
Simplify Your Indoor LED Video Wall
TQ-One integrates power delivery, signal processing and display control into one compact LED solution, reducing external equipment, wiring and installation complexity.
Traditional LED Video Wall
- LED Display
- External Controller
- External Signal Equipment
- Multiple Cables & Connections
More components can mean more installation and system complexity.
TQ-One All-in-One LED
- LED Display
- Integrated Power
- Integrated Signal Processing
- Integrated Control
A more compact system with fewer external components and simpler installation.
One integrated system. Fewer external components. A simpler path from installation to operation.
Flexible Sizes for Different Indoor Spaces
TQ-One integrates power delivery, signal processing and display control into one compact LED solution, reducing external equipment, wiring and installation complexity.

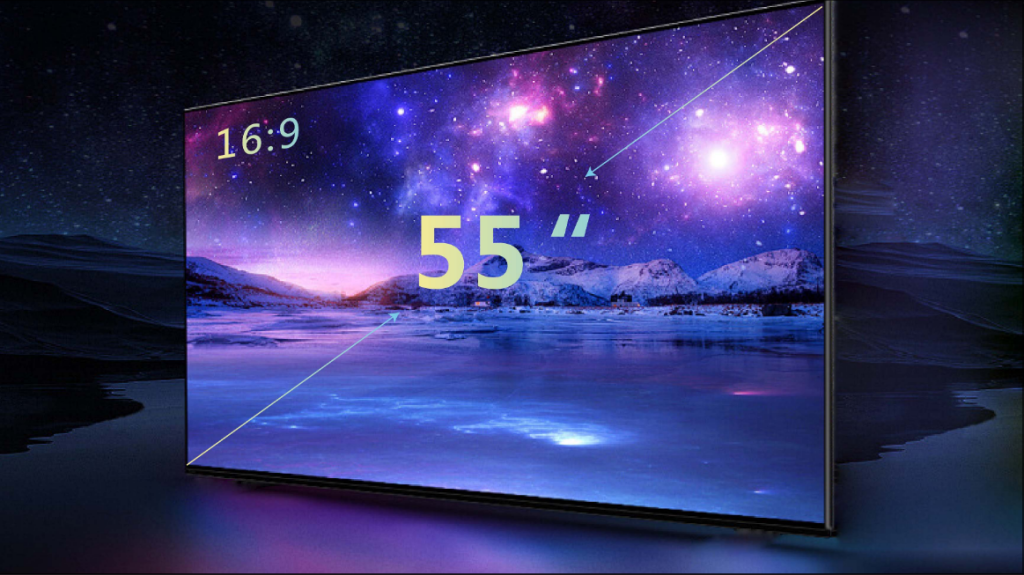

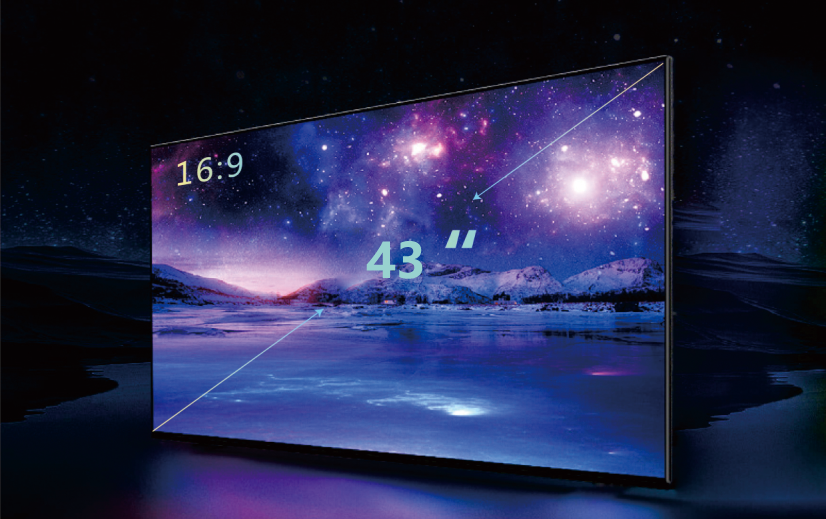

43″
55″
P0.9
P1.2
P1.5
P1.8
P2.0
P2.5
* Pixel pitch availability varies by screen size.
COB
SMD
COB or SMD. Choose the Right LED Technology.
TQ-One supports both COB and SMD LED technologies, giving you flexibility to match different project needs.
COB LED Technology
Fine-pitch Options
Supports ultra-fine pixel pitches for clear and detailed visuals.
Integrated LED Package Design
COB integrated package enhances protection and surface durability.
Optimized for Close Viewing
Ideal for close-viewing environments with superior visual performance.
SMD LED Technology
Flexible Pitch Options
A wide range of pixel pitch options to meet various project requirements.
Mature LED Solution
Proven SMD technology with stable performance and reliability.
Broad Applications
Well-suited for a wide range of indoor commercial and professional applications.
Built-In Signal Management for a Simpler LED System
TQ-One integrates multiple signal input interfaces, backup, multi-window and multi-screen management, and network video decoding into one all-in-one solution.

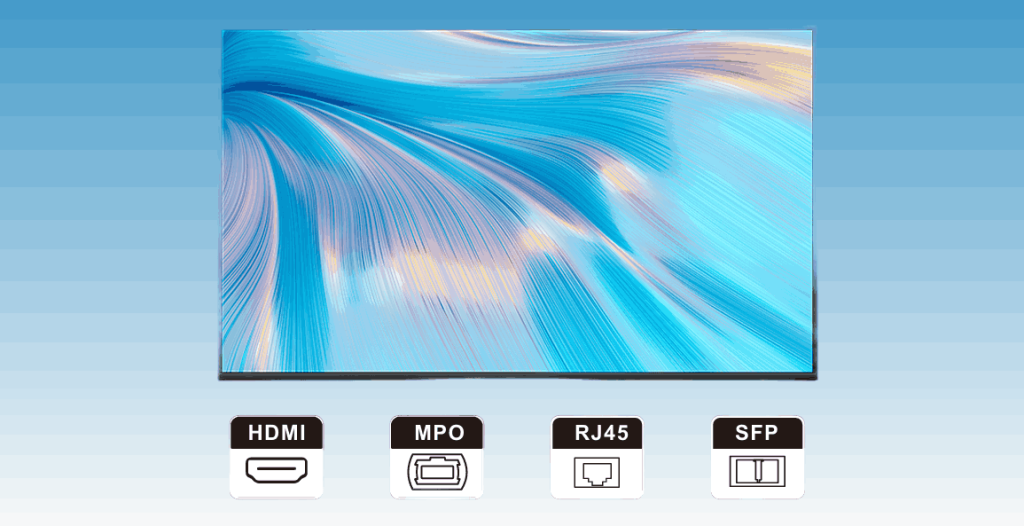

Multiple Interfaces
HDMI, DP, DVI, USB and more for flexible connectivity.

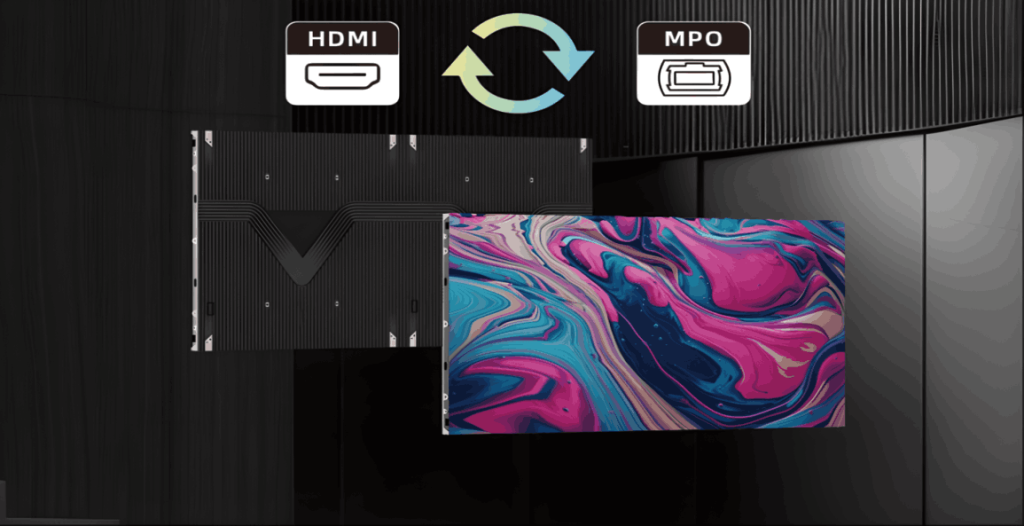

Signal Backup
Dual signal backup ensures stable content playback at all times.

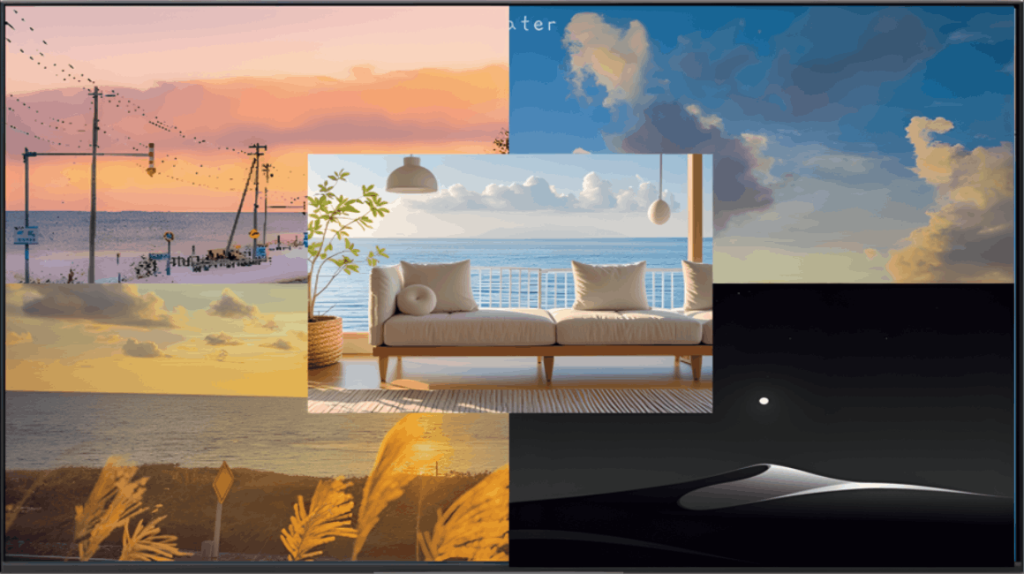

Multi-Window Display
Support multiple windows layout for different content sources on one screen.
Multi-Screen Manage
Easy management of multiple screens with synchronization.
Network Video Decode
Built-in decoding for seamless network video streaming.
INDOOR APPLICATIONS
Designed for Professional Indoor Environments
Corporate Meeting Rooms
Monitoring Centers
Retail & Commercial Spaces
TECHNICAL SPECIFICATIONS
TQ-One Series Technical Specifications
43-Inch Configuration
| Pixel Pitch | Resolution (W×H) | Panel Size (mm) | Brightness (nits) | Refresh Rate (Hz) | Contrast Ratio | Weight (kg) | Power Max (W/Panel) |
|---|---|---|---|---|---|---|---|
| P0.9 | 480 × 270 | 960 × 540 | 600 | 3840 | 6000:1 | 7.2 | 120 |
| P1.2 | 384 × 216 | 960 × 540 | 600 | 3840 | 6000:1 | 7.2 | 120 |
| P1.5 | 320 × 180 | 960 × 540 | 600 | 3840 | 6000:1 | 7.2 | 120 |
| P1.8 | 272 × 153 | 960 × 540 | 600 | 3840 | 6000:1 | 7.2 | 120 |
| P2.0 | 240 × 135 | 960 × 540 | 600 | 3840 | 6000:1 | 7.2 | 120 |
| P2.5 | 192 × 108 | 960 × 540 | 600 | 3840 | 6000:1 | 7.2 | 120 |
55-Inch Configuration
| Pixel Pitch | Resolution (W×H) | Panel Size (mm) | Brightness (nits) | Refresh Rate (Hz) | Contrast Ratio | Weight (kg) | Power Max (W/Panel) |
|---|---|---|---|---|---|---|---|
| P0.9 | 616 × 346 | 1210 × 680 | 600 | 3840 | 6000:1 | 10.5 | 150 |
| P1.2 | 512 × 288 | 1210 × 680 | 600 | 3840 | 6000:1 | 10.5 | 150 |
| P1.5 | 440 × 248 | 1210 × 680 | 600 | 3840 | 6000:1 | 10.5 | 150 |
| P1.8 | 384 × 216 | 1210 × 680 | 600 | 3840 | 6000:1 | 10.5 | 150 |
| P2.0 | 352 × 198 | 1210 × 680 | 600 | 3840 | 6000:1 | 10.5 | 150 |
| P2.5 | 280 × 157 | 1210 × 680 | 600 | 3840 | 6000:1 | 10.5 | 150 |
All rights reserved by LeYeDisplay.
TQ-One Series All-in-one LED FAQ – Frequently Asked Questions
What sizes and pixel pitch options are available for the TQ-One Series All-in-One LED TV?
Supports 43-inch (P0.9/P1.2/P1.5/P1.8/P2.0/P2.5) and 55-inch (P0.9/P1.2/P1.5/P1.8/P2.5) with SMD/COB tech—ideal for close-up HD displays.
Does TQ-One support multi-window display? How does it work?
Supports arbitrary window opening and roaming with visual drag adjustments—solves multi-screen collaboration pains for conferences/retail.
Our engineering team can support projects from initial planning to final implementation.
Our team evaluates these project details first and recommends the suitable pixel pitch, display technology, brightness, and configuration based on your actual needs.
Is TQ-One easy to install? Is it suitable for space-limited environments?
Yes, plug-and-play modular design for wall/desktop compact installs—saves space, solves time-consuming setup pains.
How does the integrated design of this LED TV work? Does it require external devices?
Power/signal/control integrated—no external host needed; direct source to screen, resolves wiring complexity and device dependency pains.

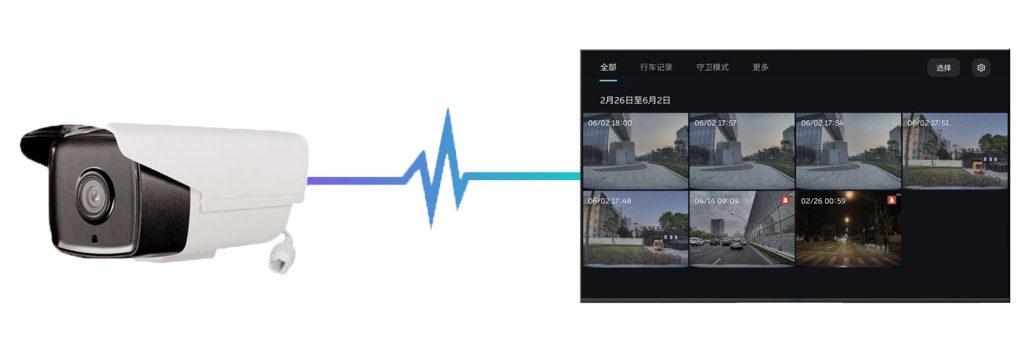

How do TQ-One's signal backup and decoding functions work?
HDMI/MPO optical backups with RTSP/IPC direct decoding for reliable transmission—addresses signal loss pains.
Which application scenarios is TQ-One best suited for?
Designed for retail storefronts, conference rooms, and monitoring centers. Multi-screen management and signal interconnection enable efficient collaboration.
