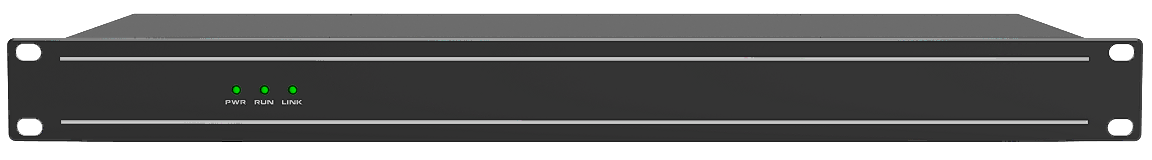

LY-DQ0808
Digital Audio Processor
An 8×8 digital audio processor designed for conference rooms, control rooms and integrated AV projects, combining flexible audio processing with reliable system control.
Audio I/O
High Quality Audio
Audio Processing
Remote Control
Audio Processing for Integrated AV Projects.
The LY-DQ0808 provides centralized audio processing for conference rooms, control rooms and integrated AV systems, combining 8×8 audio I/O with flexible DSP processing, mixing and system control.
- 8×8 Balanced Audio I/O
- Advanced DSP Processing
- Network & RS-232 Control
Essential DSP Functions in One Platform.
From echo cancellation and feedback suppression to automatic mixing and signal processing, the LY-DQ0808 provides the essential DSP tools required for professional audio and conferencing applications.
Echo Cancellation
Reduce acoustic echo in conferencing and communication applications for clearer two-way conversations.
Feedback Suppression
Detect and suppress microphone feedback to improve system stability in sound reinforcement environments.
Automatic Gain Control
Automatically compensate for level changes caused by different speaking distances from the microphone.
Automatic Mixing
Manage multiple microphones using gate and gain-sharing mixing modes for more efficient multi-speaker applications.
EQ, Filters & Limiting
Shape, optimize and protect audio signals with equalization, filtering, delay and limiter processing.
Voice Priority Control
Automatically reduce background audio levels when speech is detected, helping spoken content remain clear and prominent.
Designed for Integrated AV Environments.
The LY-DQ0808 provides flexible audio processing for professional spaces where multiple microphones, audio sources and system control need to work together.

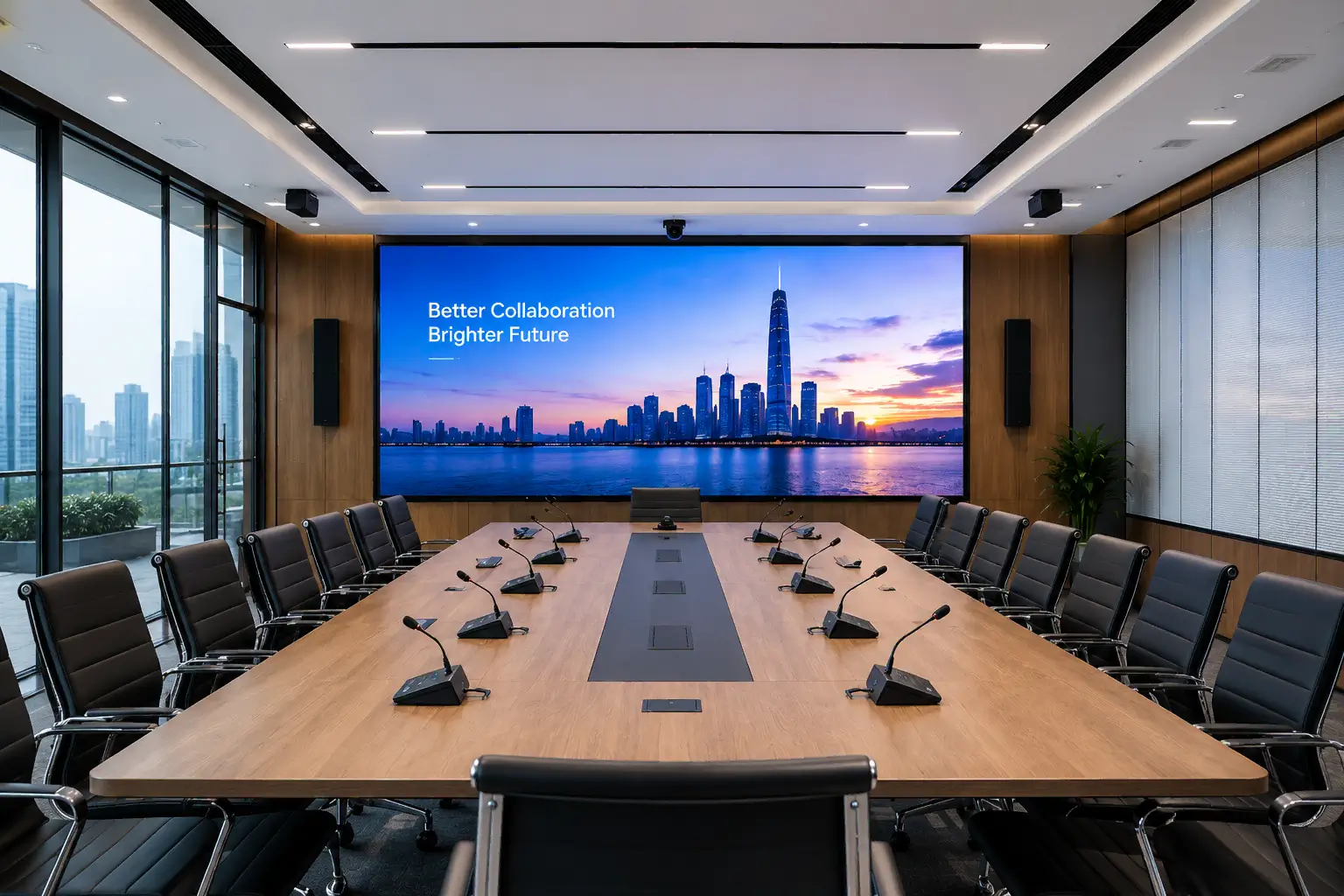

Conference Rooms
Manage multiple microphones, conferencing audio and room sound reinforcement through centralized DSP processing.
Control Rooms
Centralize audio routing and processing alongside professional visualization and control systems.
Integrated AV Systems
Integrate audio processing with network and RS-232 control for coordinated AV system operation.
Technical Details at a Glance.
Essential audio, processing and control specifications for the LY-DQ0808 Digital Audio Processor.
LY-DQ0808
Audio I/O
High Quality Audio
Control
| Specification | LY-DQ0808 |
|---|---|
| Audio Inputs | 8 × Balanced Mic / Line Inputs |
| Audio Outputs | 8 × Balanced Line Outputs |
| Sampling Rate | 48 kHz |
| Bit Depth | 24-bit |
| DSP Functions | AFC, AGC, DUCKER, Limiter, Auto Mixing, AEC |
| Input Processing | PEQ, High / Low Pass Filters, Gain, Mute, Phase, Delay |
| Output Processing | PEQ, High / Low Pass Filters, Gain, Mute, Phase, Delay, Limiter |
| Auto Mixing | Gate / Gain Sharing |
| Control | Network / RS-232 |
| Third-Party Integration | Network and RS-232 Control |
Frequently Asked Questions.
Quick answers about the LY-DQ0808 Digital Audio Processor.
What is the LY-DQ0808 Digital Audio Processor used for?
The LY-DQ0808 is an 8×8 digital audio processor designed for professional AV applications such as conference rooms, control rooms and integrated AV systems. It provides audio routing, DSP processing, mixing and system control in a single platform.
How many audio inputs and outputs does the LY-DQ0808 support?
The LY-DQ0808 provides 8 balanced microphone/line inputs and 8 balanced line outputs, making it suitable for systems that require centralized processing of multiple audio sources.
What DSP functions are available on the LY-DQ0808?
The processor supports functions including AEC, AFC, AGC, DUCKER, limiter, automatic mixing, PEQ, filtering and delay for flexible audio signal processing.
Can the LY-DQ0808 be integrated with third-party control systems?
Yes. The LY-DQ0808 supports network and RS-232 control, allowing integration with third-party control systems in professional AV projects.
Is the LY-DQ0808 suitable for conference room applications?
Yes. Features such as acoustic echo cancellation, automatic gain control and automatic mixing make the LY-DQ0808 suitable for multi-microphone conferencing and meeting room audio applications.
