Fine-Pitch COB LED Display
Designed for close-viewing indoor applications where resolution, image consistency and long-term reliability matter.
Built for the Distance Where Details Matter
Fine pixel pitches help preserve text clarity and image detail at shorter viewing distances, making the TQW Series well suited for content such as presentations, spreadsheets, dashboards and video conferencing.
Fine Text & Presentations
Clearer reproduction of text, charts and presentation content.
Detailed Data Visualization
Designed for dashboards, monitoring interfaces and information-dense content.
Close-Range Viewing
Fine pixel pitches from P0.78 to P1.56 support projects with shorter viewing distances.
A Native 16:9 Platform

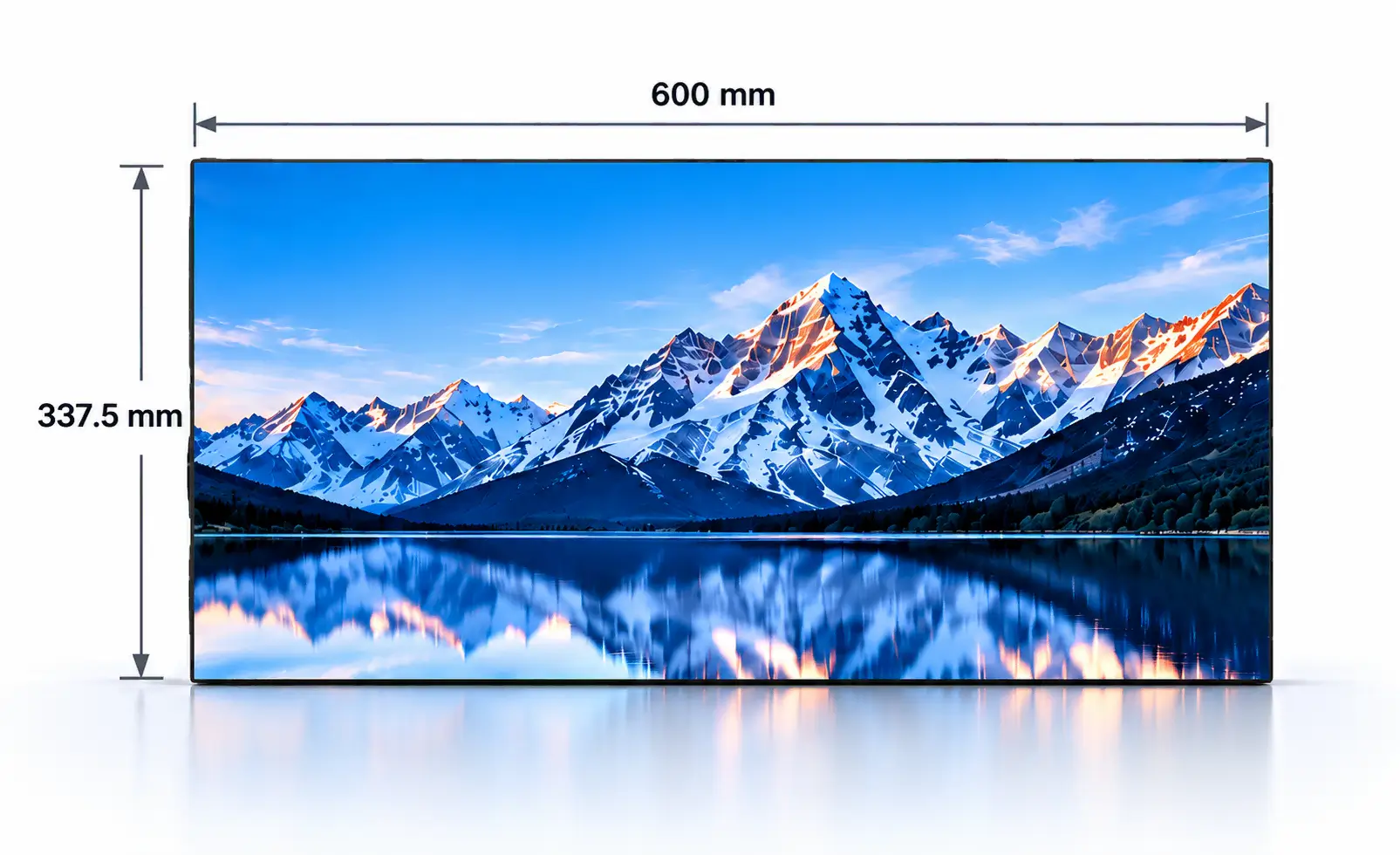

The 600 × 337.5 mm cabinet follows a native 16:9 format, creating a practical foundation for widescreen LED displays and standard video content.
16:9
Native Format
Perfect for mainstream widescreen content.
600 × 337.5 mm
Cabinet Dimensions
Native 16:9 dimensions for widescreen LED configurations.
Modular Design
Scalable Architecture
Flexible configurations for different screen sizes and project requirements.
Choose the Right Pixel Pitch
From ultra-fine to versatile, the TQW Series offers four pixel pitch options for different project sizes, viewing distances and content requirements.
Built on Full Flip-Chip COB Technology
Full Flip-Chip COB integrates the LED surface into a compact fine-pitch platform designed for close viewing, physical protection and long-term professional use.
Close-Viewing Experience
Fine pixel pitches and an integrated COB surface are suited to text, graphics and detailed visual content viewed at shorter distances.
Protected LED Surface
COB encapsulation reduces exposed LED components, helping the display surface resist dust, moisture and everyday physical contact.
Designed for Professional Use
The platform is built around the stability and durability requirements of meeting rooms, control rooms and other permanent indoor installations.
Image Quality You Can See
Designed for professional indoor environments where color, consistency and viewing coverage matter.
NTSC
Supports a broad color range for rich and detailed visual content.
Uniformity
Designed for consistent visual performance across the display surface.
Viewing Angle
Maintains clear visibility across a wide range of viewing positions.
Consistent visual performance matters across the entire viewing area.
From presentations and detailed data to video and professional visual communication, image quality matters beyond resolution.
Designed for Professional Indoor Environments
Built for projects where close viewing, detailed content and consistent image performance matter.

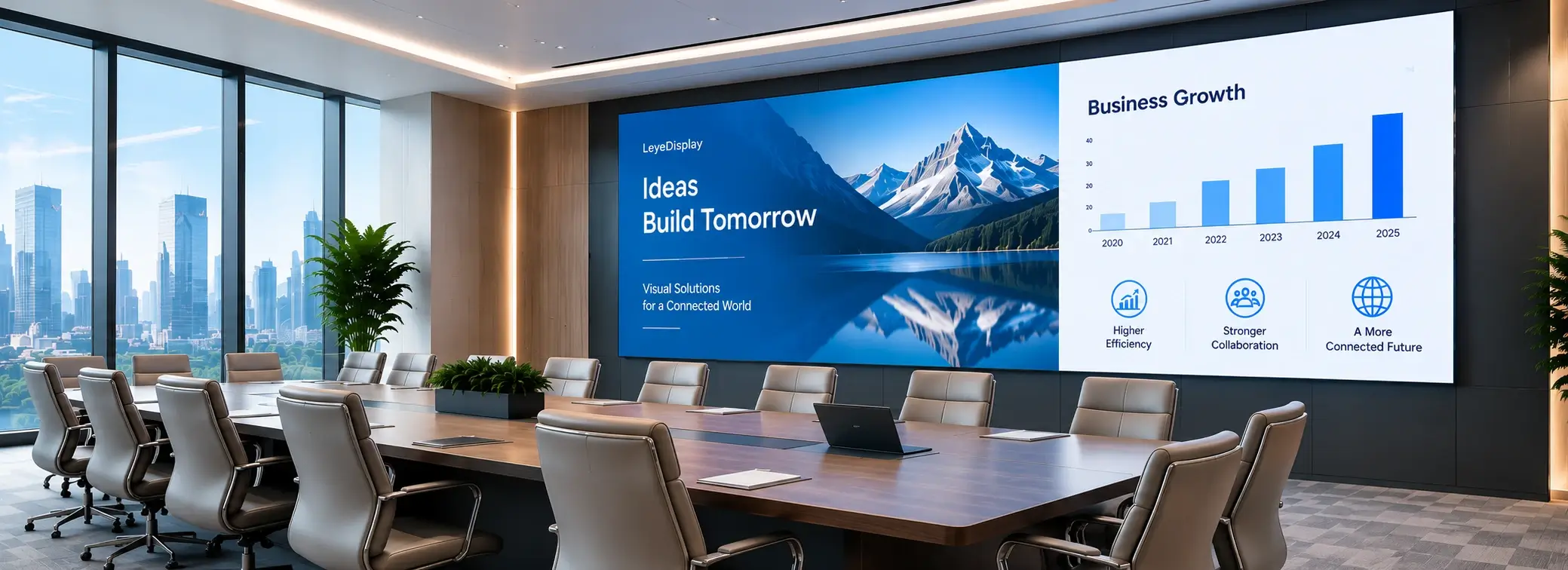

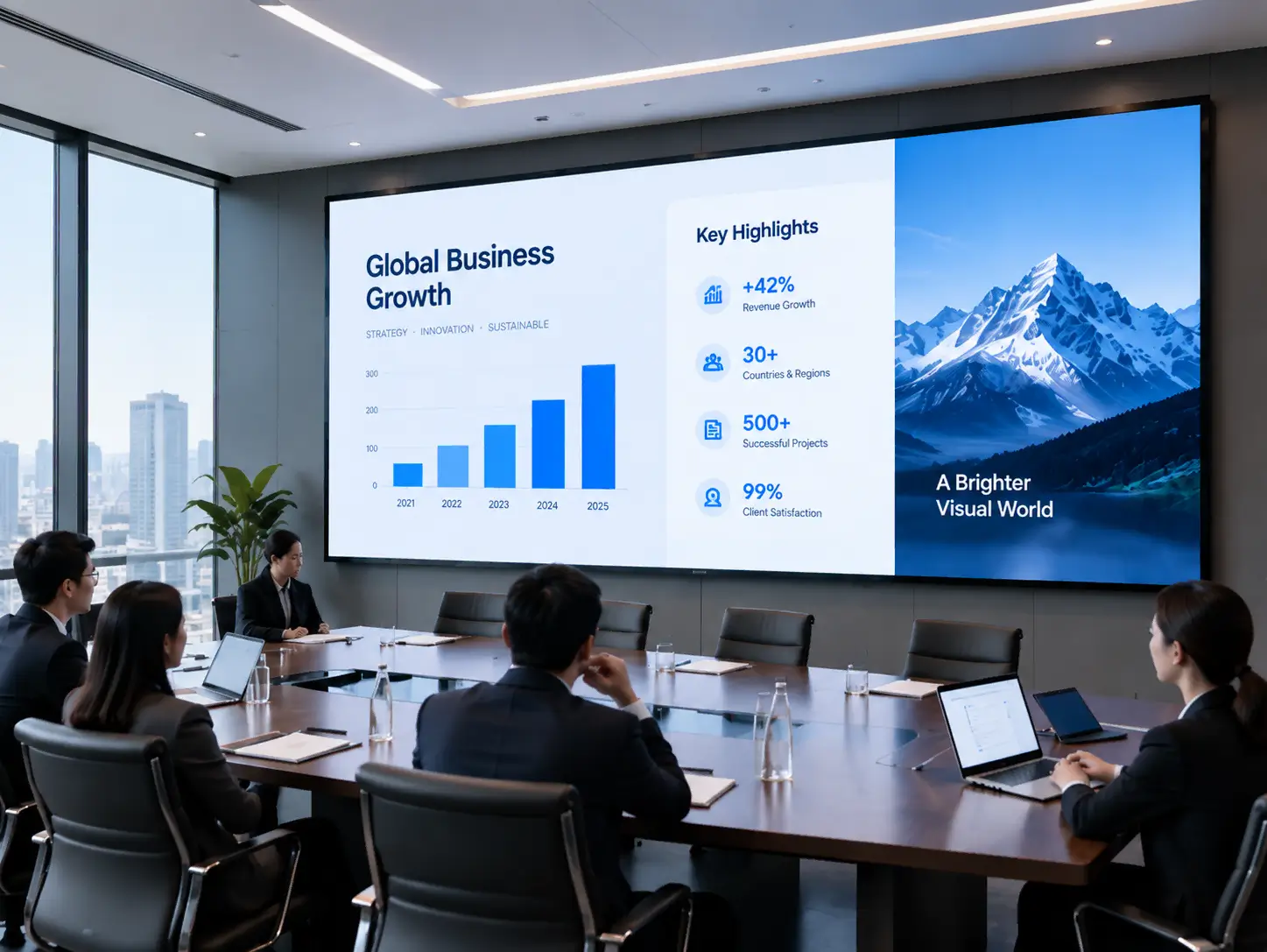

Corporate Meeting Rooms
Presentations, video conferencing and detailed business content viewed at shorter distances.
Control Rooms
Dashboards, monitoring interfaces and information-dense content requiring clear visual presentation.
Professional Visualization
Premium indoor environments where image detail, consistency and viewing quality are important.
Technical Specifications
Compare the four fine-pitch options and identify the configuration that best fits your project requirements.
| Specification | P0.78125 | P0.9375 | P1.25 | P1.5625 |
|---|---|---|---|---|
| Pixel Pitch | 0.78125 mm | 0.9375 mm | 1.25 mm | 1.5626 mm |
| Cabinet Resolution (W × H) | 768 × 432 | 640 × 360 | 480 × 270 | 384 × 216 |
| Cabinet Size (W × H × D) | 600 × 337.5 × 37.7 mm | 600 × 337.5 × 37.7 mm | 600 × 337.5 × 37.7 mm | 600 × 337.5 × 37.7 mm |
| Cabinet Weight | ≤ 5 kg | ≤ 4.5 kg | ≤ 4.1 kg | ≤ 4.5 kg |
| Brightness | 600 typ. / 800 max. | 600 typ. / 800 max. | 600 typ. / 800 max. | 600 typ. / 800 max. |
| Viewing Angle (H / V) | 165° / 165° | 165° / 165° | 165° / 165° | 165° / 165° |
| NTSC Color Gamut (CIE 1931) | ≥ 105% | ≥ 105% | ≥ 105% | ≥ 105% |
| Brightness & Color Uniformity | ≥ 97% | ≥ 97% | ≥ 97% | ≥ 97% |
| Contrast Ratio | 5,000:1 | 5,000:1 | 5,000:1 | 5,000:1 |
| Refresh Frequency | 1920–3840 Hz | 1920–3840 Hz | 1920–3840 Hz | 1920–3840 Hz |
| Maximum Power Consumption | 550 W/m² | 415 W/m² | 395 W/m² | 355 W/m² |
| Average Power Consumption | 145 W/m² | 113 W/m² | 108 W/m² | 95 W/m² |
| Input Voltage | AC 100–240 V | AC 100–240 V | AC 100–240 V | AC 100–240 V |
| Frame Rate | 60 Hz | 60 Hz | 60 Hz | 60 Hz |
| Gray Scale | 13 bit | 13 bit | 13 bit | 13 bit |
Specifications may vary by configuration. Contact us for project-specific technical data and configuration recommendations.
Frequently Asked Questions
Common questions about selecting, configuring and planning a fine-pitch COB LED display for professional indoor projects.
Which pixel pitch should I choose for my project?
The right pixel pitch depends on viewing distance, screen size, target resolution and the type of content being displayed. P0.78125 and P0.9375 provide higher pixel density for closer viewing and resolution-sensitive applications, while P1.25 and P1.5625 can provide a practical balance for projects with longer viewing distances or larger screen sizes. We recommend evaluating these factors together rather than selecting a pixel pitch based on one specification alone.
What is the difference between P0.9375 and P1.25?
Both options use the same 600 × 337.5 mm cabinet platform, but their pixel density and cabinet resolution are different. P0.9375 provides a cabinet resolution of 640 × 360 pixels, while P1.25 provides 480 × 270 pixels. P0.9375 is therefore better suited to projects requiring higher resolution or closer viewing, while P1.25 can be a practical choice where the viewing distance is greater.
Why use a 600 × 337.5 mm cabinet?
The 600 × 337.5 mm cabinet follows a native 16:9 aspect ratio, making it well suited to standard widescreen video, presentations and other 16:9 content. Its modular architecture also allows multiple cabinets to be combined when planning larger LED display systems.
Is this COB LED display suitable for meeting rooms and control rooms?
Yes. The fine pixel pitch options, high pixel density and wide viewing angle make the platform suitable for indoor environments where users may view text, presentations, dashboards, video conferencing and detailed visual content at relatively short distances. The final pixel pitch should be selected according to the actual viewing distance and resolution requirement.
Can the display be configured for different screen sizes?
Yes. The 600 × 337.5 mm cabinet is designed as a modular LED platform, allowing cabinets to be combined into different screen dimensions. The final screen size and resolution depend on the cabinet layout and selected pixel pitch, so both should be considered during project planning.
What information should I provide for a project recommendation and quotation?
Please provide the required screen size, viewing distance, application, main content type, target resolution if available, and basic installation conditions. With this information, we can review the project requirements and recommend a suitable pixel pitch and configuration before preparing a quotation.
