Why LED Video Walls for Control Rooms?
- High Reliability & Continuous Operation: Control rooms run 24/7, often with minimal acceptable downtime. LED systems designed with dual (or more) power supplies, signal redundancy, hot-swappable modules, and continuous diagnostics help ensure uninterrupted operation.
- High Brightness & Contrast: Ambient lighting and sometimes even daylight penetration demand LED walls with high brightness (nits) and good contrast so that displayed content remains legible and vivid.
- Grand angle de vision: Multiple operators in different parts of the room must have consistent color, brightness, and clarity; displays with wide horizontal and vertical viewing angles are essential.
- Fine Pixel Pitch & High Resolution: Close viewing distances and the need to see detailed charts, live maps, video feeds, etc., demand fine pixel pitch (e.g. P0.9 to P2.5 or even finer) and high resolution to avoid visual fatigue.
Key Technical Specifications
Here are the technical parameters to define when specifying LED video walls for control rooms:
| Spécifications | Recommended Value / Range | Reason / Importance |
|---|---|---|
| Pixel Pitch | P0.7 – P2.5 mm for indoor control room, depending on viewing distance | Ensures sharp detail; too coarse and small text or data visuals blur.COB LED |

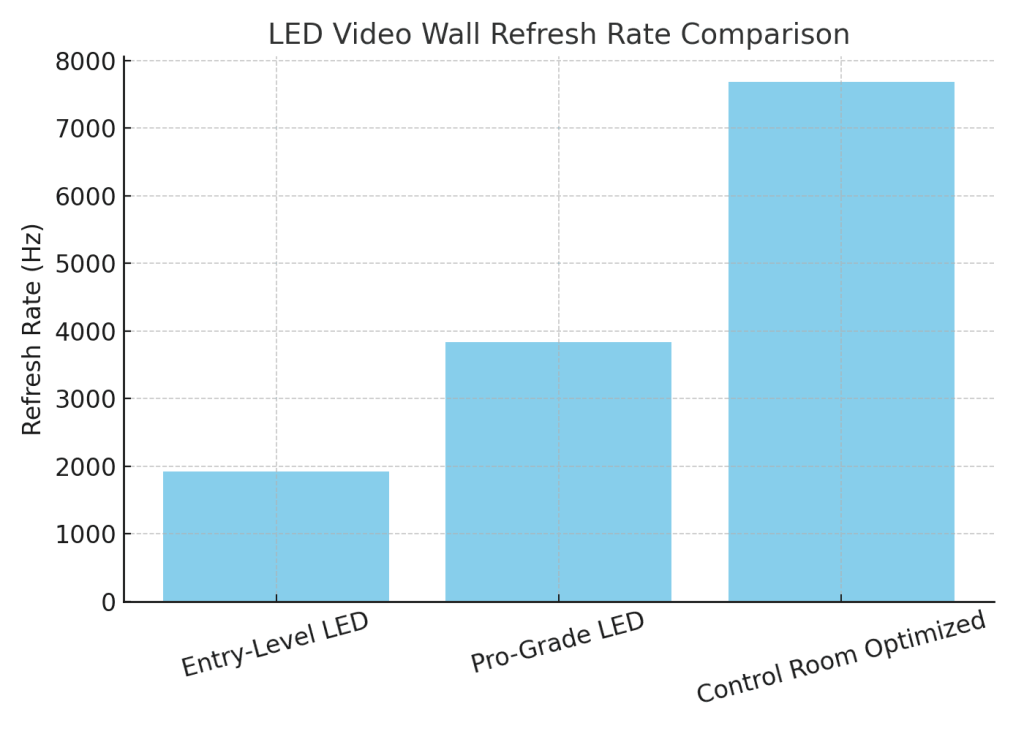

| Refresh Rate | ≥ 3840Hz, ideally 7680Hz+ for fast motion & camera capture (if needed) | Reduces flicker, improves motion clarity, reduces eye strain. |

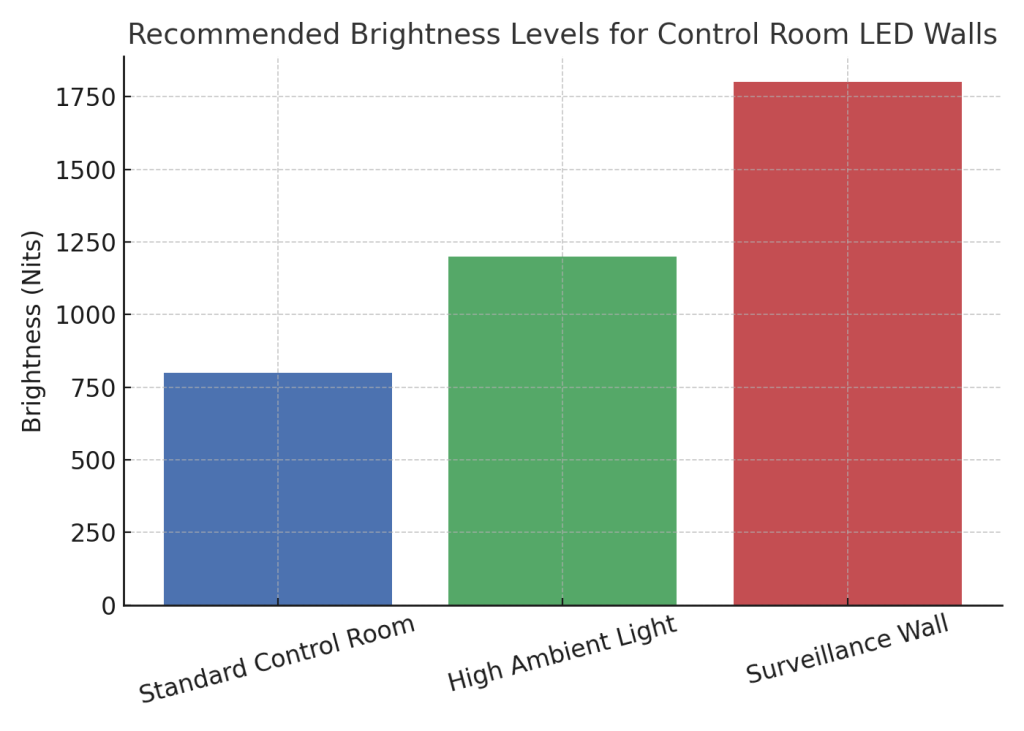

| Brightness (Nits / cd/m²) | 800-1200 nits typical; higher if high ambient light; can go up to 2000+ nits based on lighting condition | Ensures visibility under diverse lighting, avoids glare and wash-out. |
| Viewing Angle | Horizontal ≥ 160°, Vertical comparable; minimal color / brightness degradation | Multiple operator positions; consistency across the wall surface. |
| Reliability / Redundancy | Dual power & control systems; signal paths redundancy; hot-swappable modules; lifespan >100,000 hours | For mission-critical uptime; minimizing maintenance downtime. |
Design & Layout Best Practices
- Room Size, Viewing Distance & Wall Size: Before selecting pixel pitch or total wall dimensions, map out operator positions vs distance to wall. If too close, high-pixel pitch needed; if far, larger modules are acceptable.
- Ergonomics & Operator Comfort: Opt for low bezel or seamless displays; avoid tilting or placing displays too high / too low. Reduce reflected glare by controlling ambient light, using non-specular finishes.
- Ambient Lighting & Contrast Management: Incorporate auto brightness control; use “dark rooms” or controlled lighting where possible. Lighting fixtures placement should avoid reflecting directly into panels.
- Content Layout & Signal Management: Use video wall processors / control systems that allow flexible layout (multiple windows, live feeds, dashboards). Plan how content will be organized—alerts, maps, CCTV feeds, etc. Signal redundancy and latency are key.
- Maintenance & Serviceability: Choose designs that allow front or rear module servicing; include diagnostics and monitoring tools for temperature / voltage faults; design for easy module replacement.
Case Use & Scenarios
- Emergency / Public Safety Control Rooms: Rapid response relies on instant detection; multiple camera feeds, alerts, maps; need high-up time and redundancy.
- Utility & Infrastructure Monitoring: Power grid, water treatment, transport — requires real-time data overlays, visual dashboards, sometimes video streams, weather or external data.
- Broadcast / Media Operations Centers: For mixing live video feeds, local news, monitoring other channels — demands high refresh, minimal latency.
- CCTV / Surveillance Rooms: Need excellent resolution for image detail, ability to zoom in, clarity under low light; consistent color calibration.

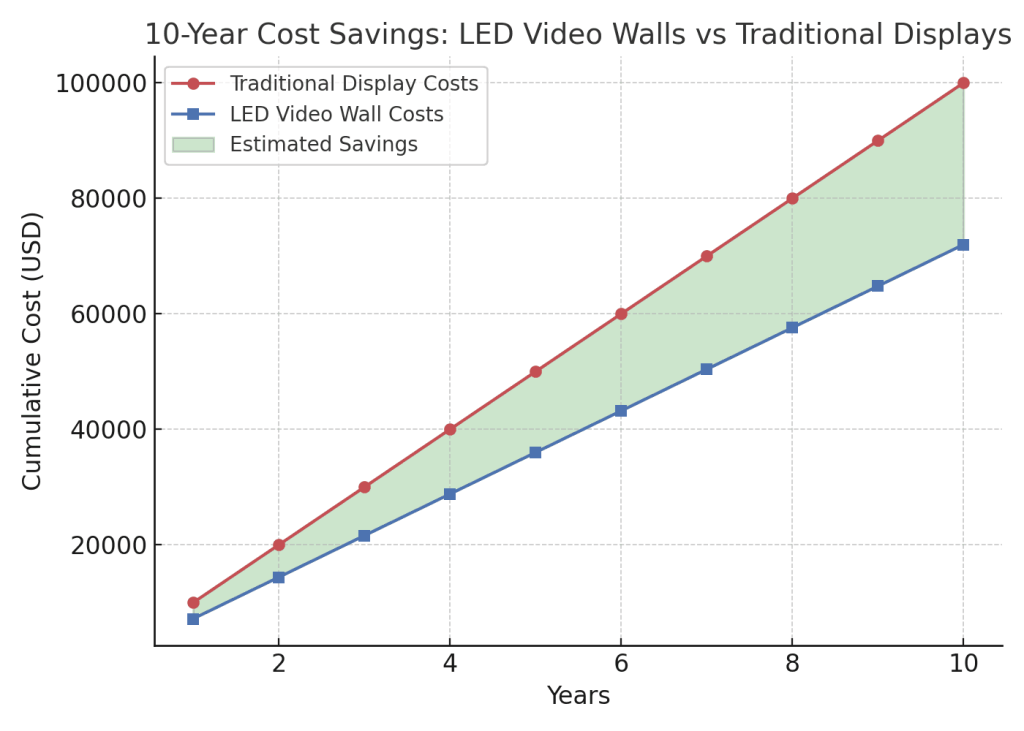

ROI & Total Cost of Ownership (TCO)
- While initial cost of high-quality LED video wall for control room is substantial, over the lifespan (10+ years), savings come via lower maintenance, less downtime, fewer replacements.
- Energy consumption: choosing efficient modules, intelligent brightness control, and modern LED tech reduces electricity cost.
- Productivity gains: clearer visuals → faster decision making → fewer errors. That also has quantifiable value especially in mission-critical contexts.
Building a control room with an LED video wall isn’t just installing display panels—it’s designing for mission-critical reliability, clarity, and usability. The right specification for pixel pitch, refresh rate, viewing angle, brightness, and redundancy transforms how operators monitor and respond. If you’re planning a control room upgrade or a new installation, contact us for a custom solution: we can help with design, specification, supply, installation, and long-term support.
