Russian Ultra-Thin Brilliance: TQC Series
The ultra-slim LED video wall that blends into architecture while commanding attention.
Thinnest Ever: TQC LED Walls
P1.56 I P1.95 I P2.6 I P3.91
Discover the TQC Series ultra thin LED Video Walls—just 31mm thin and 2.9kg light, redefining ultra-thin LED displays. With fine-pitch options (1.56mm–3.91mm), 7680Hz refresh rate, and ≥500 nits brightness, it delivers stunning high-definition visuals without ghosting or ripples.
Front maintenance, rigid connection, and free splicing (500/750/1000×250mm) ensure fast, flexible installation—wall-mounted, hoisted, or column-based. Built for extremes (-40°C to 50°C, IP3X), it’s perfect for retail, events, and control rooms.

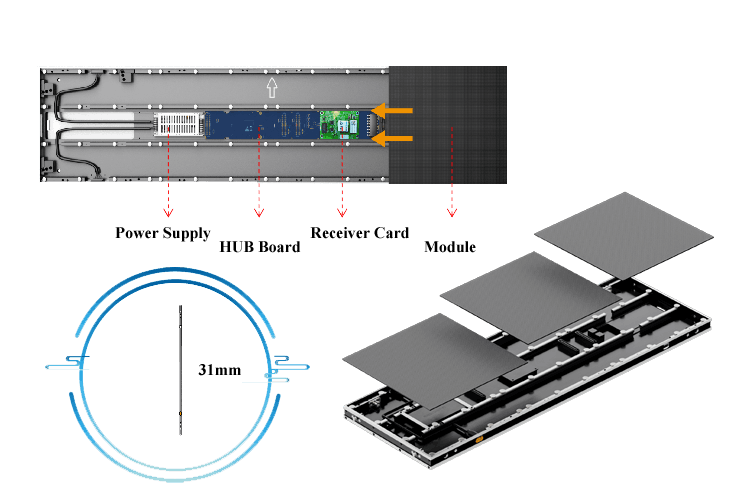

Rigid Connection Front Maintenance
The Rigid connection design between the module and the cabinet completely gets rid of wire constraints, making it more stable and safer
Front maintenance installation saves more space
High Definition and High Refresh Rate
The refresh rate reaches 7680Hz, ensuring high-definition and stable images without ripples, ghosting, or trailing.
Free Splicing, Infinite Creativity
1000x250, 750x250 and 500x250 can be flexibly and freely spliced to meet the needs of more scenarios
Minimalist Design Easy Installation
Ultra-thin 31mm TQC cabinet with captive screws, locating pins, and front-access power for effortless, space-saving installation.
Installation Methods
Supports various installation methods such as wall-mounted installation, hoisting, and column-mounted installation
Application Scenarios
Salle de conférence
Hotel Lobby
Centre de commandement
Shopping Mall

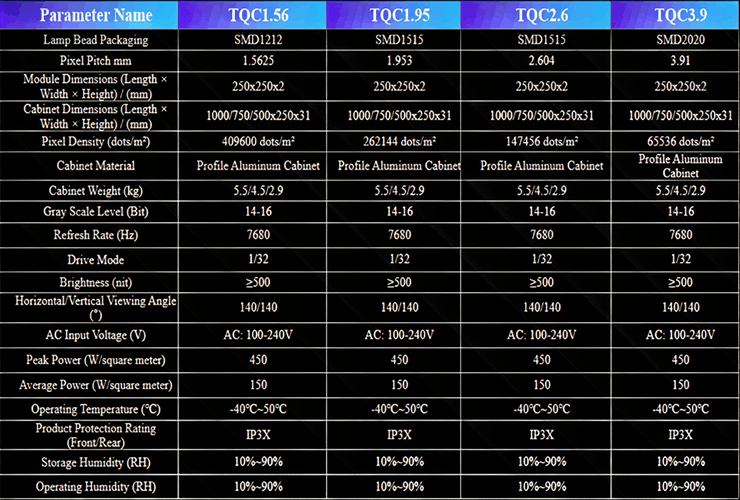

Product Parameters
